Beginners expression in UDA???
  • Forums
  • Resources
  • Mentions
  • Sub-Groups
  • Tags
  • More
  • Cancel
  • New
  • Replies 16 replies
  • Subscribers 2 subscribers
  • Views 195 views
  • Users 0 members are here
Options
  • Share
  • More
  • Cancel
Related

expression in UDA???

timothy
timothy over 13 years ago

  • Sign in to reply
  • Cancel

Top Replies

  • Mehmet Wagner
    Mehmet Wagner over 13 years ago +2
    set the datatype of the UDA to reference
  • timothy
    timothy over 13 years ago
    [QUOTE=corrado;62034]eben, could you please explain what is your final aim?
    Maybe there is another method to reach what you need.

    I'm attempting to set up PDMS for electrical.
    The boss would like to see call outs for cable tray pieces on a draft drawing.
    The catalogs we have, were made by others. So I created a UDA and for SPCO and have gave each piece a number that corresponds to a BOM number.
    For example a 600x600x600 SS Tee  may be an item number of “T6005” While a 600x400x600 SS Tee may be an item like “T6305”

    Then I created a UDA for a TEE. The idea was to link the together using the TEE’s spref so that the UDA could find the right SPCO and extract the per-setup BOM number.
    Thus the :MTONUMD (:MTONUMD OF SPREF)
    The :MTONUMD is the TEE’s UDA
    The :MTONUM is the SPCO’S UDA (in which the Item number was installed)

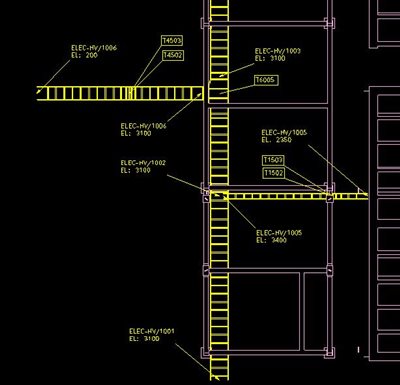

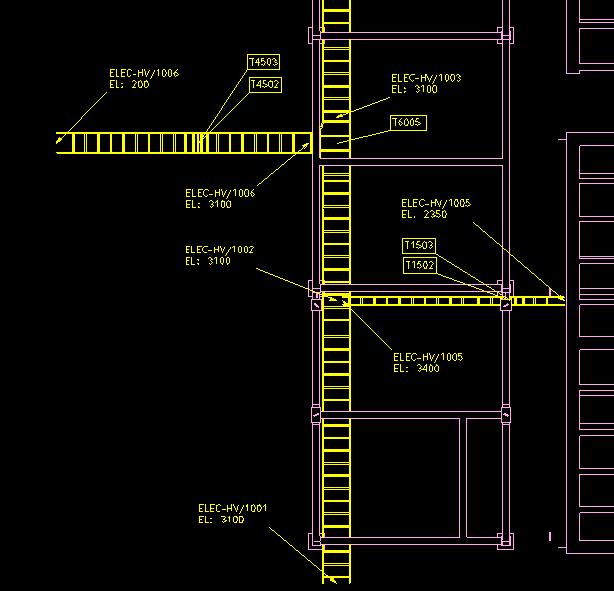

    Then later in draft I was going  to right an auto tagging rule for the TEE and other parts I’ve made item numbers for.
    The outcome is supposed to be a label for each tray part without the need of a drafter to figure it out.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • timothy
    timothy over 13 years ago
    And while your at I use a criteria just to lable tee for an autotagging rule. I tried this with no luck...
    Criteria  ALL BRANCH MEMBERS WITH ( ATTRIB TYPE EQ ID TEE )
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • timothy
    timothy over 13 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Corrado Galluzzi
    Corrado Galluzzi over 13 years ago
    Can't you create an autotagging rule with: Criteria ALL TEE
    And on the label: #:MTONUM
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Mehmet Wagner
    Mehmet Wagner over 13 years ago
    set the datatype of the UDA to reference
    • Cancel
    • Vote Up +2 Vote Down
    • Sign in to reply
    • Cancel
  • Emil Fatkhiev
    Emil Fatkhiev over 3 years ago in reply to timothy

    Did you find the solution?
