INCH DIA. MACRO(NUMBER OFF TACK WELD x SIZE)

Please explain this one "would you plz tell me what is diffrent between "SHOP WELD DETAILS" , "SHOP JOINT DETAILS" and "SCREWED SHOP JOINT DETAILS".
how this micro find when use shop weld,shp jioint or screwed?"

Please explain this one "would you plz tell me what is diffrent between "SHOP WELD DETAILS" , "SHOP JOINT DETAILS" and "SCREWED SHOP JOINT DETAILS".
how this micro find when use shop weld,shp jioint or screwed?"



Friends,

I have one problem.

Our one of clients asking us INCH-DIA / INCH Mtr Report for single line.
I have approximate 500 Lines of different MOC.
We always used this DIAINCH utility for bulk INCH-DIA report.

How I can extract report for each Line?

Thanks in advance.

Is it possible to report the LENGTH as well?

This Macro is nice  but I could not able to do for pipe wise in single attempt due to file name ?

hi friends

good afternoon

from this macro u cannot create dia inch report for each line.

its only for consolidted and procurement purpose

to get inch dia for separate line. we need to have different macro.

i can give a n idea to create the same. create a macro to count no of welds in line and write the values to same pipe with some uda.

it will help to generate inch dia report for each line

thx
senni

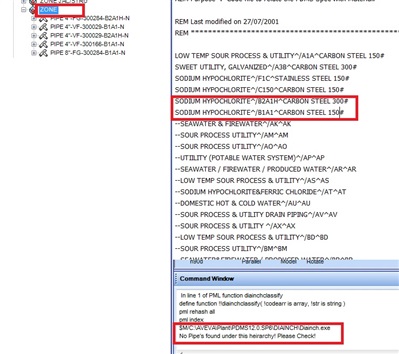

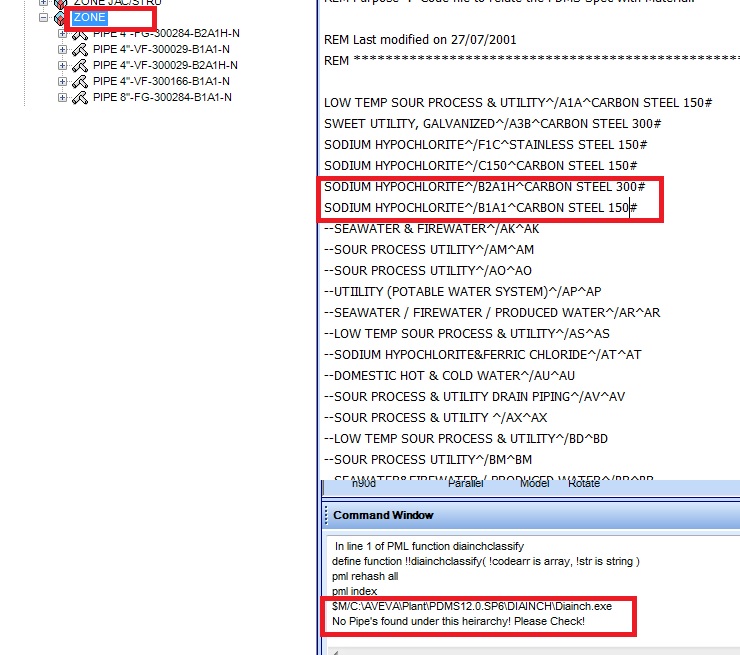

While running the macro i m getting this error

Called from line 556 of Macro C:\AVEVA\Pdms11.5\DIAINCH\Diainch.exe
!!diainchclassify( !TOTSWLIST,'LLIST' )

[QUOTE=mohammedshafi4u;99040]While running the macro i m getting this error

Called from line 556 of Macro C:\AVEVA\Pdms11.5\DIAINCH\Diainch.exe
!!diainchclassify( !TOTSWLIST,'LLIST' )

Check the #11 post.

[QUOTE=sennirajesh;55970]Dear all,

Here is the macro to extract the DIAINCH report from model for piping zone. I have prepared and attached the detail procedure for DIAINCH reporting and sorting to order

Please make it useful and give a feed back on this

thanks
senni


Any Body please clarify me about this generated reports will be having SHOP JOINTS
ThIS SHOP JOINTS are included with SW/sc too ???
