DXF Output error

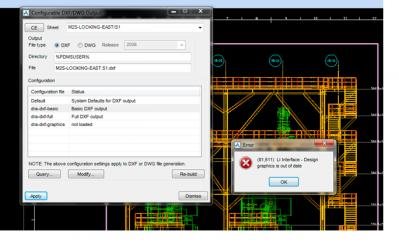

You need to update your drawing...something in the 3D model has changed...



Try checking if there is any warning/error message in the PDMS Console Window...

Thankyou sir

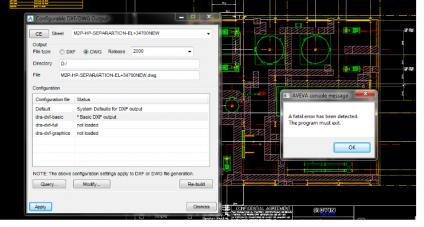

Warning : Could not find Configuration data-set : dra-dxf-basic, Aborting!

Have you checked you have a file called dra-dxf-basic.pmldat in your PDMS default directory (i.e. C:\AVEVA\Plant\Data12.1.SP4\pdmsui\DFLTS )?







Yaa. I have checked .. those files are there in the dflt folder.

All 3 pmldat files (dra-dxf-basic, dra-dxf-full and dra dxf-graphics) are inside pdmsui (defaults) folder. Even macros (default_dxf.mac) is in correct path under pdmsexe. Evars file is also correctly set.

Still it shows this problem. I dont know what is missing?
