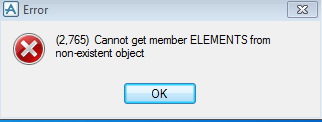

Pdms conversion 11.6 to 12.0sp6.0 -cause draft error



I am also facing similar problem where all my drawings in draft mode are appearing blank and the lines appear black or non-existent. Only the name plate of the drawings are appearing and all border/bounding lines are invisible too..

I upgraded from PDMS 11.6 Sp5 to 12.0 Sp6 and my design and isodraft module is working like a breeze. Do I need to rollback and use my backup and do the upgradeMac procedure again or is there a fix for it.

Thanks in advance.

Hi ,

The issue is solved with latest fix SP6.53

You cant see the changes in the converted 12.0  project.

You have to install  the fix and need to update the project again from 11.6 TO 12.0 With updated macro, to see the difference.

Problem solved... :joyous: Everything is working as intended. Goind to updrage to 12.1 SP2 now. Downloading fix32 for that too.
