[QUOTE=RUAV;77975]Dimensions?
Elevations?
Tags?
Symbols?
References?
Title block
etc
Does it all appear?

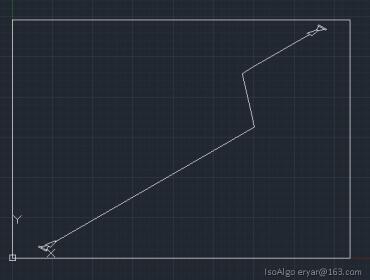

Not finish yet...
I am now focus on the piping components symbol replacement, then will be the dimensions, BOM, and so on...
[QUOTE=tomek;77993]Hi Eryar, you can also generate dxf from isodraft, so what is your target ?
T.
Hi, tomek. yeap, the Isodraft can generate dxf format and it is easy to use. Sometimes the result is not correct, though the situation appear rarely, but I can do nothing. So I want to develop a similar program, then the isometrics generation is under control... :welcoming:
Thank u, tomek.
When I finish some basic functions, such as dimensions, BOM, weld numbers .etc, I will release one develop version(include some C++ header files, library, dll) for free. :-)
I have heard about some possibility to work with PCF files. Some years ago i tried to find out where and how they are generated (at PDMS), but without success, it seems Isogen at PDMS have special interface. Can you share something about it, please ?
