IsoAlgo

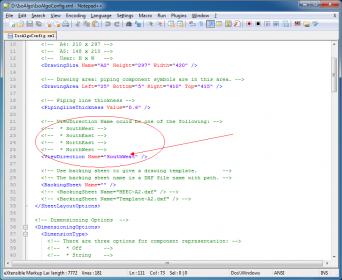

Is it possible to output axonometry from this soft ?



Add GUI for IsoAlgo:


Figure 1 Add PCFs


Figure 2 Add PCF Dialog

Good Work Eryar.....
How about defining new Iso Symbols?

[QUOTE=sspatilsp;91661]Good Work Eryar.....
How about defining new Iso Symbols?

All the symbols are from IsoAlgoSymbolTemplate.xml,  can define new symbol there.

When I finished the user guide of IsoAlgo, I will put it here, you can download and have a try...

Download IsoAlgo and have a try: IsoAlgo

IsoAlgo3d - A PCF 3D Viewer

1. Visualize PCF file in the 3D Viewer;
2. Add Weld for the pipe spool;

here is the IsoAlgo3d GUI:

Figure 1. IsoAlgo3d Main GUI


Figure 2. Insert Weld for pipe spool
