Piping Component Dimensions

Hi rhel,

If it is possible for you, please upload final macro of yours here again include all modifications.

Thanks ...



https://aveva.dev-verintcommunity.com/cfs-file/__key/communityserver-discussions-components-files/1635/280713pcompDim.pmlfrm



E3D Have a option for this.

Good to hear for this development in E3D.

[QUOTE=rhel;85145]Glad to Share...!

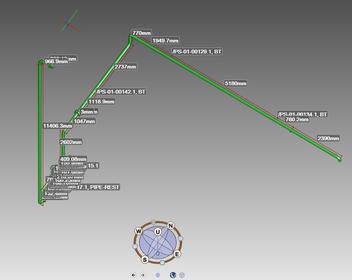

Piping Component Dimensions Utility. Display components dimensions in 3d design view, elbow elevation, tag Items & branch head and tail position.

[ATTACH=CONFIG]7392[/ATTACH]

Mr. Rhel

I am searching tools like a MDS support Dimension with graphic in design module, is it possible.??

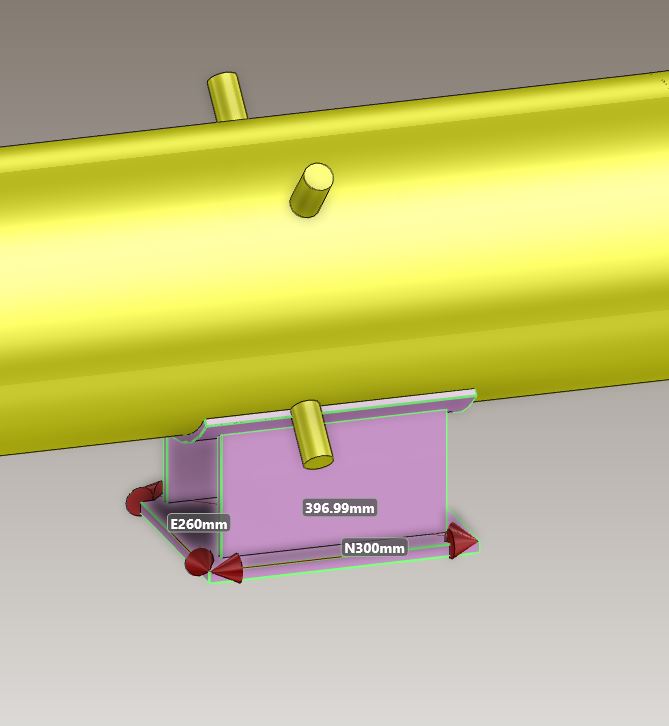

My concern is I have to validate MDS support dimension(Shoe support) height x Width x Length in design module without place on pipe. If it is preview available with dimension, so it is easy my work.

Thanks in advance
