CREATING SCAREF FOR ALARMS

Hi

You need to define an Area shape, which should be a 2D symbol and add it on required instruments (or other elements).

Refer to Project>Options>Diagram Options>Attribute Presentation>Area shape and unselect "Read Only" for Attributes/UDAs you want.

Regards

it is appearing as read only so a uda needs to be designated for scaref created ; i tried changing  in diagramssetup.xml including the atrributes still the error persists read only did not go i wa strying for HH H L LL YET  it was not letting me remove read only from scaref

We are looking into the issue and  i can share the code as wel <Atttribute attrID="VMD_SCOINS_SCAREF.TYPE" lablel="HH" prompt="" visible="true" readOnly="false" order="037"visibleInItemList="true" />
<Atttribute attrID="VMD_SCOINS_SCAREF.NAME" lablel="H" prompt="" visible="true" readOnly="false" order="038"visibleInItemList="true" />
<Atttribute attrID="VMD_SCAREF.DIAREF.NAME" lablel="L" prompt="" visible="true" readOnly="false" order="039"visibleInItemList="true" />
<Atttribute attrID="VMD_SCAREF.DIAREF.DESC" lablel="LL" prompt="" visible="true" readOnly="false" order="040"visibleInItemList="true" />

i have included this in diagram setup xml file yet that read only is not going and nor ALARAM SETTINGS are coming for scoins

ALI can you enlighten us about this it will be very beneficial

Hi Anindya;

I can think about below points:

1- Make sure AVEVA Diagrams reading .xml file from a correct address, you can see the loaded file message when AVEVA Diagram opens, in Messages, User Tab.

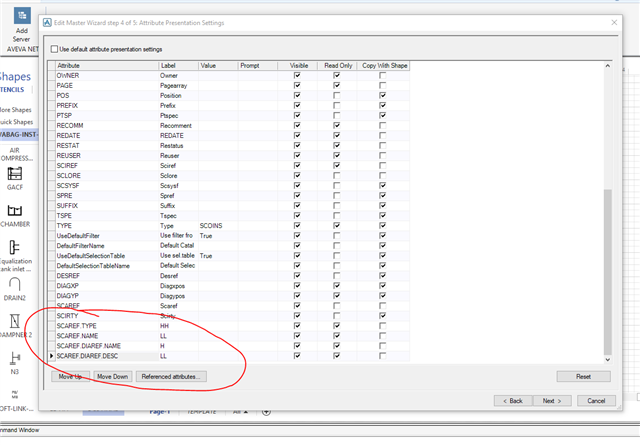

2-Change Read Only checkbox within "Edit Master Shape Wizard" too and save.

3-What is your AVEVA Diagrams version? You may need to install a new fix.

Regards
