Good afternoon guys,
I'm trying to put transparency in the obstruction volumes (modeled with Equipment and configured as Obstruction Volume), in the IFC file, but the IFC files do not receive the transparency value.
EXPORT ENCODING UTFEIGHT
EXPORT SYSTEM /explantmcad
EXPORT OPTION |FORMAT| |IFC2x3|
EXPORT FILE "$!StrFilename" OVERWRITE
REPRE DARCTOL $!DARCTOL
EXPORT HOLES ON
EXPORT AUTOCOLOUR DISPLAYEXPORT ON
REPRE ON
REPRE TUBE ON
REPRE CL OFF

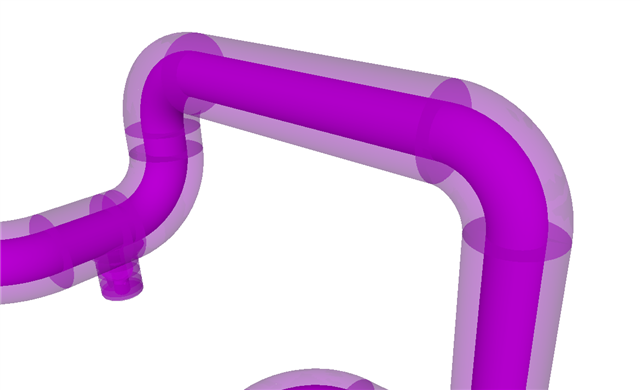

REPRE INSU ON TRANSLUCENCY 25

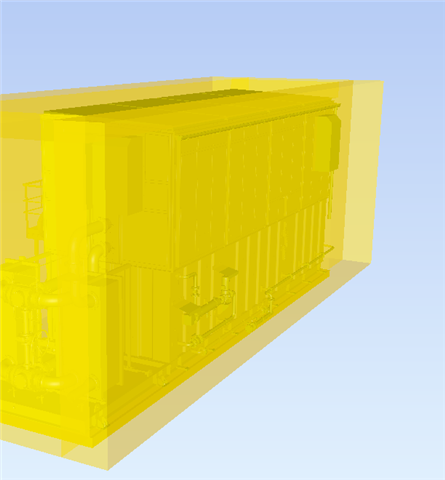

REPRE OBST ON TRANSLUCENCY 75
REPRE LEVEL PIPE 6
REPRE LEVEL NOZZ 6
REPRE LEVEL STRU 6
REPRE LEVEL CABLE 6
REPRE LEVEL REST 6
REPRE LEVEL 6
EXPORT OPTION |DATALEVEL| |G|
EXPORT OPTION |DATUM| |DTOUT-APGF133-HDR|

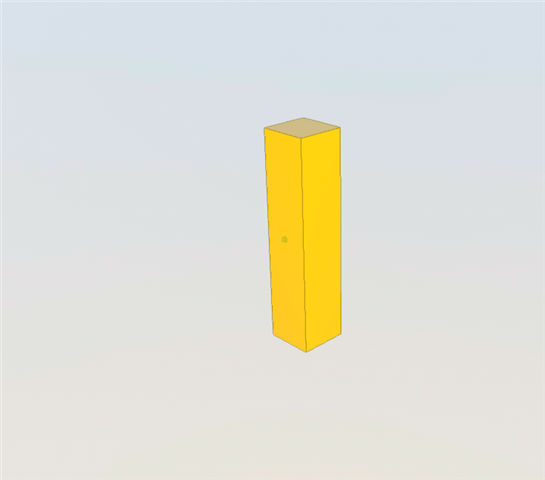

Has anyone experienced this, and if so, do you know where I might be going wrong?
Need: Apply transparency in E3D's IFC files (extracted from the command line).
