How to use expression in Catalogue to get the steel thickness from design for the MDS supports

What is the hierarchy structure of the u-bolt? Is it a FIXING under the GENSEC that it's penetrating through?

In the new Support Application (no MDS) that's an ANCI element

Hi Anh Le,

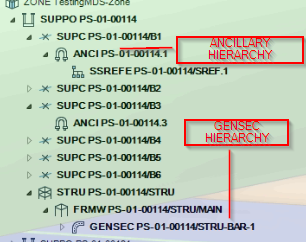

This is Support ancillary. Below image FYR,

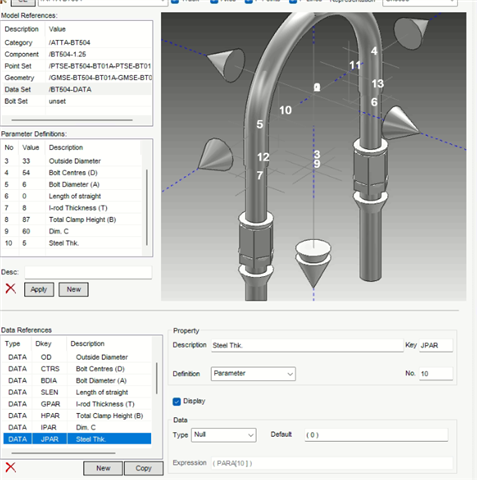

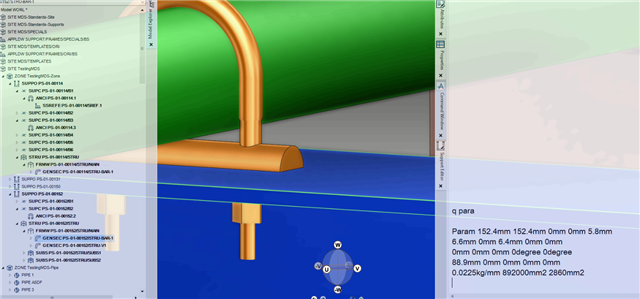

I need to frame an expression in the ancillary dataset to get the thickness of the angle thickness to align the nuts in the U-Bolt.

Let's say that the L thickness is Parameter Number 6, then you could try something like:

para6 of first mem of first mem of pcpset num1 of suppo

Hi Mr. Corrado,

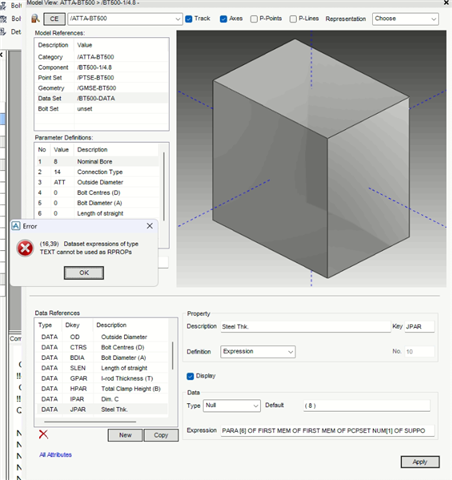

Below error while giving the expression,

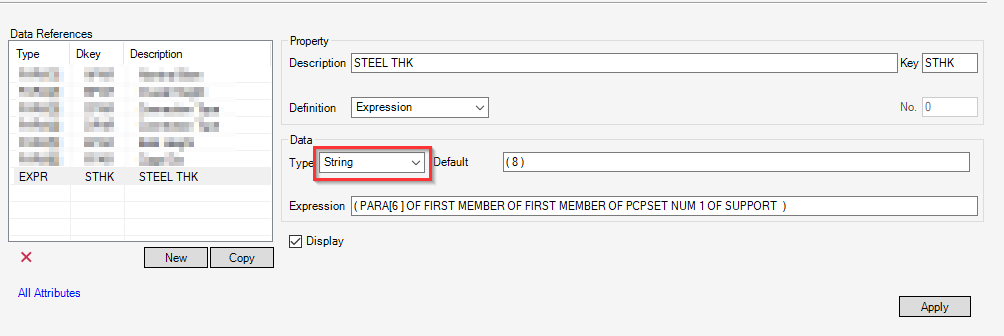

No error message for me. I have set String as Data Type:

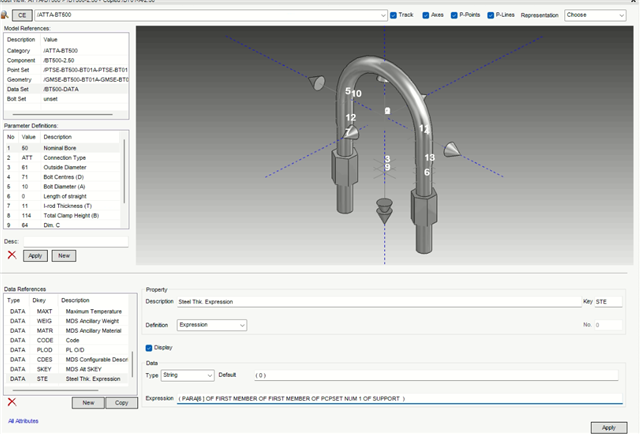

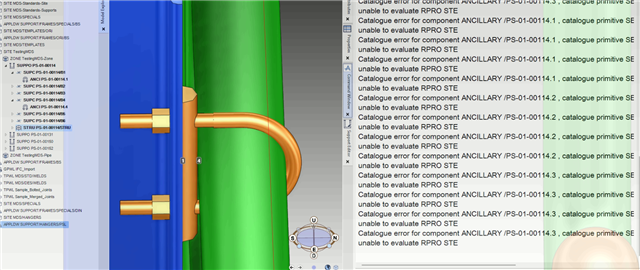

I tried modifying the expression. But it's not working in Design,

Hi Alfred,

One question about the attached image. Out of the box the SSREFE elements are hidden, how do you got to show them? Any customization?

Thanks

Hi Natalia,

Type $T8+ in command window.

Thanks Venkatesan, it works fine!
