ATTA elements in Inter DB Macro

Hi. I am also curios.

Regarding this automated macro, may I ask in what situation it is being created?

Samer,

The Inter DB macro will be created when Extracting Isometric Drawing when you enable the REPEATABILITY in your Option File. This will Create a macro where it will create Split ATTA on the point where the ISODRAFT Split the PIpe Automatically (if no SPLIT Atta is modeled within the pipe yet).

Hi Cary. Thank you for the explanation. But I want to observe the output of these inter DB macros on the <project>mac folder location. So I created a long pipe with 4 branches while the REAPEATABILITY was turned ON (as you mentioned) and still unable to see any inter db macro output. Do you have suggestion of how can they be shown?

Samer,

I have done some test in APS Project. When you extract Isometric Drawing with REPEATABILITY ON. Isometric drawing with Split will have message regarding the need of atta as below.

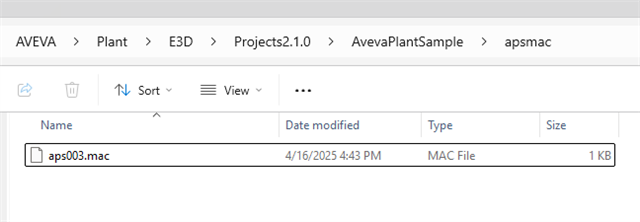

In this time, inter DB Macro is not yet created. It will be until you save your work and will gave the message with the location of the mac file

hope this is the answer you are looking for.

hi Carry. it did came out when I tried the same line as you have shown on APS project. Thanks for your help.

hi Carry. it did came out when I tried the same line as you have shown on APS project. Thanks for your help.
