I've created FTUBs for prefabricated flanged-one-end pipe spools, but I cannot find a skey that will show the component as P1 flanged and P2 plain on the isometric. I've also tried the component as a PCOM but still can't get a flanged x plain end iso symbol to generate.
P1 PSKEY is set to FLAN & P2 to TUBE
Ideas?
Hello, I think that either Skey FPFL or Skey FPPL should work since you explicitly defined the Pskey on both Ppoint 1 and Ppoint2.
Just to be clear, Skey is a different thing from Pskey (Ppoint Skey).
Skey is an attribute of the SDTE element referred by a SPCO element (under SPEC hierarchy).
While Pskey is an attribute of a Ppoint element (under CATE hierarchy)
For the Ppoint 2 Pskey, can you try to set it to Plain by using the Modify Category form?
I am not sure but I suspect that TUBE is not a valid Pskey value.
Also just to be sure, can you try to set the Ppoint 1 Pskey to Flange by using the Modify Category form.
Help page about FTUB Skeys https://docs.aveva.com/bundle/e3d-design/page/989067.html
Help page about Pskeys https://docs.aveva.com/bundle/e3d-design/page/1037813.html
Hello, I think that either Skey FPFL or Skey FPPL should work since you explicitly defined the Pskey on both Ppoint 1 and Ppoint2.
Just to be clear, Skey is a different thing from Pskey (Ppoint Skey).
Skey is an attribute of the SDTE element referred by a SPCO element (under SPEC hierarchy).
While Pskey is an attribute of a Ppoint element (under CATE hierarchy)

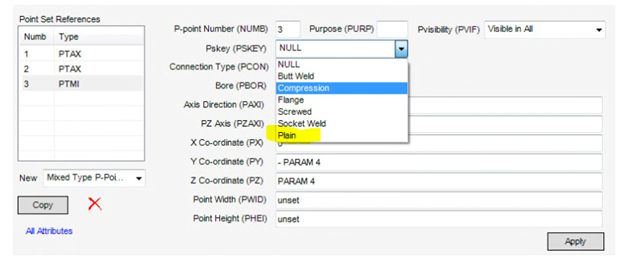

For the Ppoint 2 Pskey, can you try to set it to Plain by using the Modify Category form?
I am not sure but I suspect that TUBE is not a valid Pskey value.

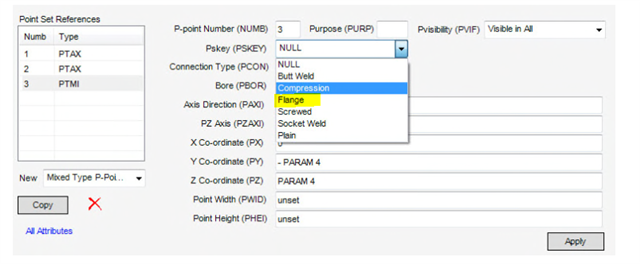

Also just to be sure, can you try to set the Ppoint 1 Pskey to Flange by using the Modify Category form.
