How to Create T-Frame MDS Support for Cable Tray in E3D

Samer 6 months ago

Dear all,

I am seeking guidance on how to create a T-frame support for a Cableway model in E3D. I attempted to use the CT08 framework, but the result did not meet my expectations, as shown in the image below.

Has anyone encountered a similar issue or could provide advice on how to achieve the desired outcome?

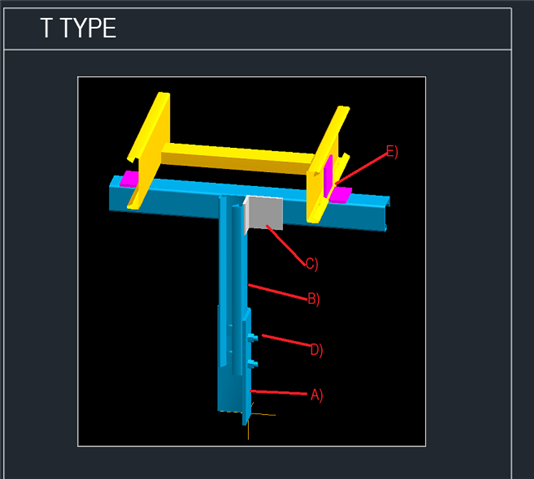

Below is the 2 types I wanted to achieve:

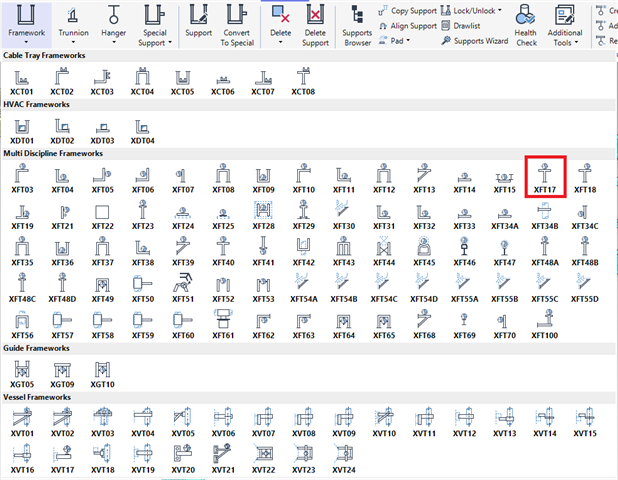

In Aveva E3D we have FT17 but I can able to use it if I am going to chose piping discipline. But it won't work if I directly choose cableway type.

Thank you in advance for your assistance.
Best Regards,
Samer

Top Replies

Corrado Galluzzi 6 months ago in reply to Samer +1

CT08 seems to work fine to me. I am using E3D 3.1.8.1

Corrado Galluzzi 6 months ago

"I attempted to use the CT08 framework, but the result did not meet my expectations, as shown in the image below."

I think you forgot to attach the image...

What is wrong with CT08?
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Samer 6 months ago in reply to Corrado Galluzzi

Hi Corrado,

I have re-inserted the image here. I hope you can able to see.

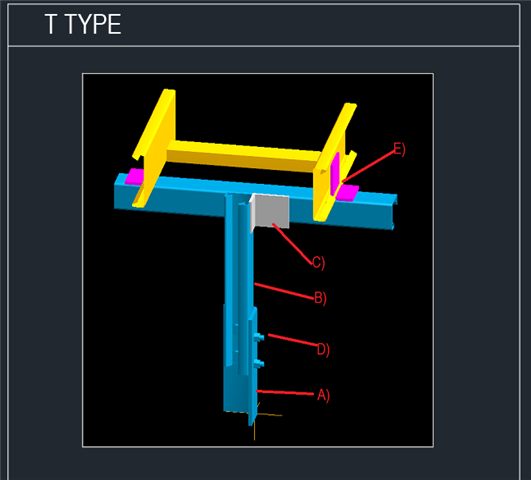

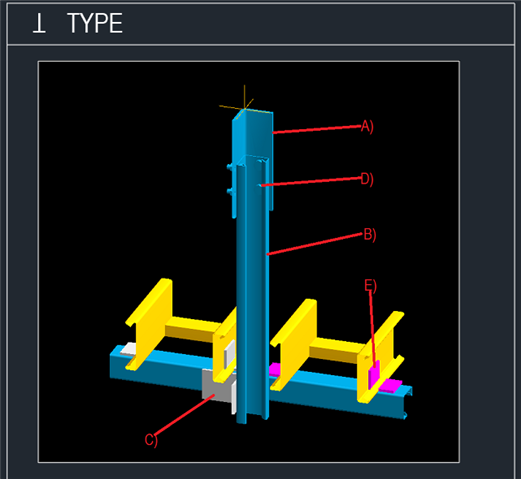

These are the T -type frames I wanted to achieve. Not sure if using the CT08 will do.
As when I tried to model it, the output is just similar to CT02.

Same with CT07, the output looks like just same with L-frame only. Not able to adjust the length on the other of steel.

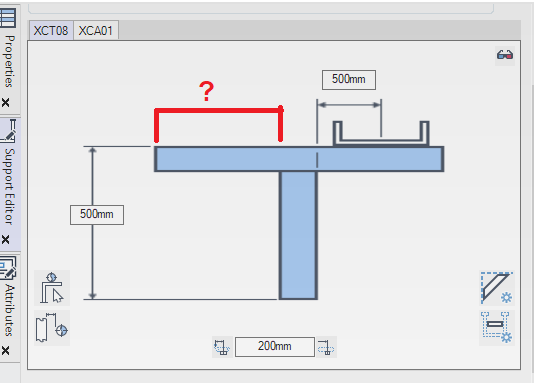

The side of steel I wanted to extend is as per below:

Thanks.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Corrado Galluzzi 6 months ago in reply to Samer

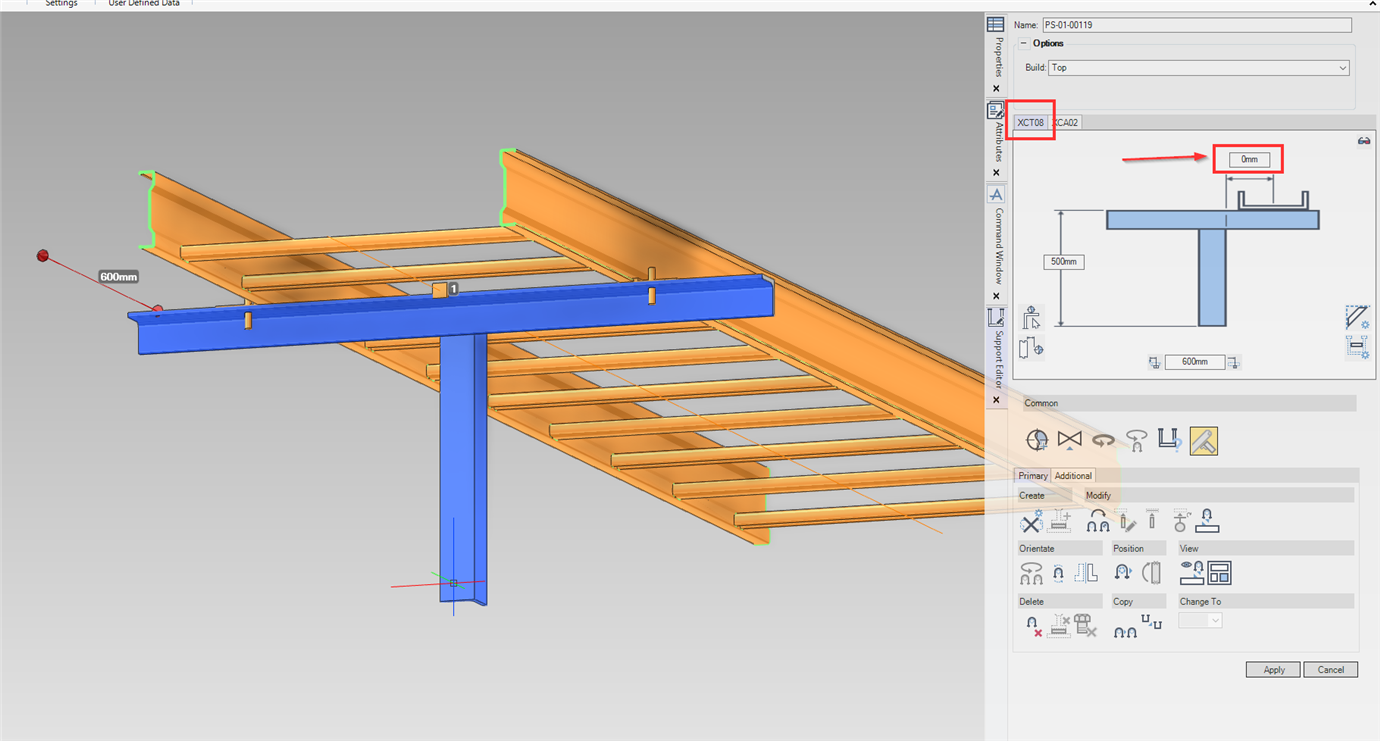

CT08 seems to work fine to me. I am using E3D 3.1.8.1
Cancel
Vote Up +1 Vote Down

Sign in to reply

Cancel
Samer 6 months ago in reply to Corrado Galluzzi

Hi Corrado. I just lack of understanding this type of support. So, changing the distance to zero will create the T shape. Thank you for your guidance.
