Isodraft Co-ordinates issue

Hi all,

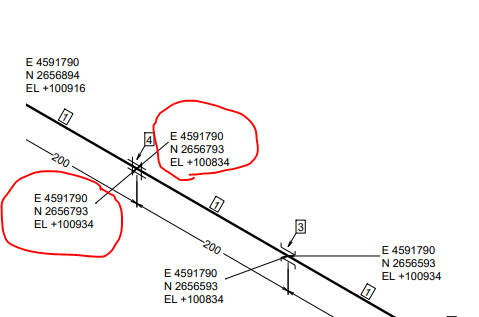

We recently upgraded from version 2.1 to 3.1, and since the upgrade, we are experiencing an issue with the customized 'skey'. It is now displaying unnecessary coordinates, which was not the case in the previous version

what could be the issue?

Top Replies

Corrado Galluzzi 2 months ago in reply to Kiran Bachhav +1

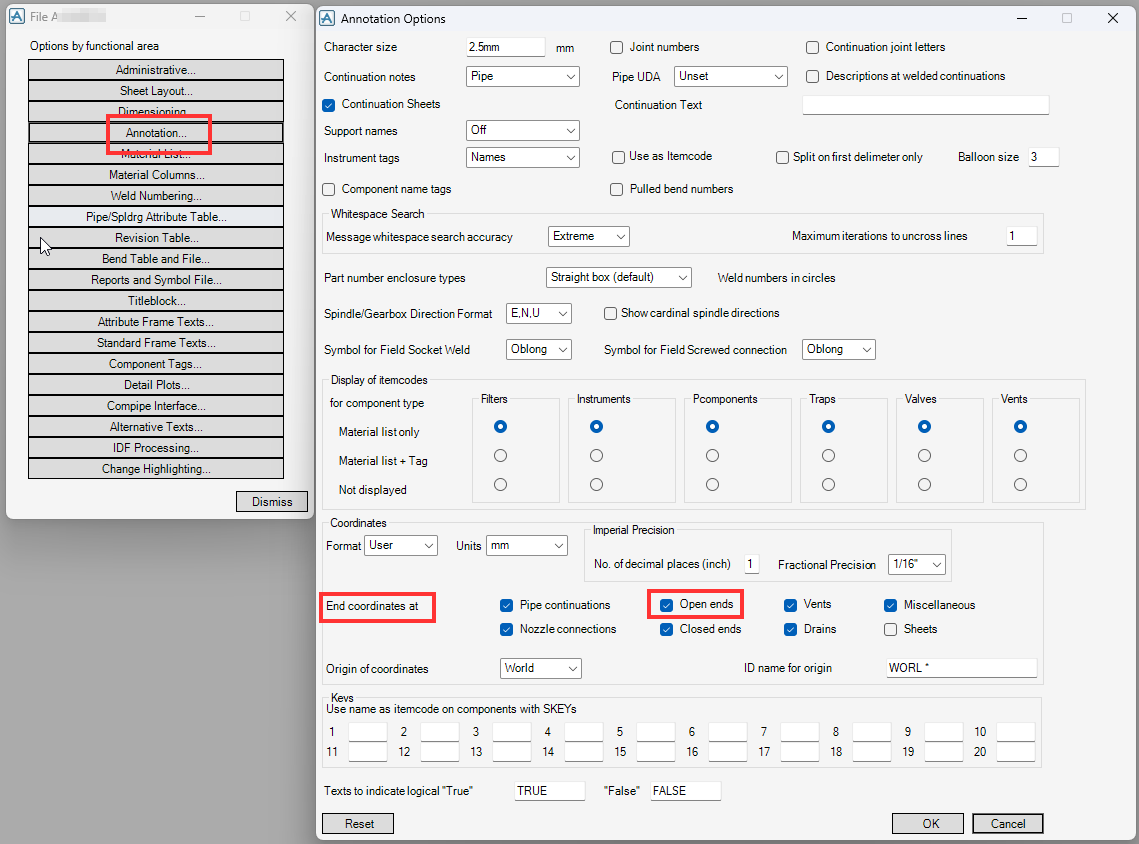

Ok. In that case, if P3 and P4 are unconnected, they will be "open ends". So you could try un-checking the following setting:
Kiran Bachhav 2 months ago in reply to Corrado Galluzzi +1

we have done Coordinates OFF at Misc & it is solved. Thanks Corrado.

Corrado Galluzzi 2 months ago

What kind of components are they?

Supports?

Do they have any 3rd of 4th connecting point?

What is the Base Skey for your user defined Skeys
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Kiran Bachhav 2 months ago in reply to Corrado Galluzzi

This is Shu we used as support. Yes connection points are there more than 3 and 4. Base skey we used NCPL for all Shu supports.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Corrado Galluzzi 2 months ago in reply to Kiran Bachhav

Ok. In that case, if P3 and P4 are unconnected, they will be "open ends".

So you could try un-checking the following setting:
Cancel
Vote Up +1 Vote Down

Sign in to reply

Cancel
Kiran Bachhav 2 months ago in reply to Corrado Galluzzi

we have done Coordinates OFF at Misc & it is solved. Thanks Corrado.
Cancel
Vote Up +1 Vote Down

Sign in to reply
