AVEVA Everything3D Isometric issue

Isometric issue

Kiran Bachhav 2 months ago

Hi,

We have pipe with branch contains component around 112 (mostly SHU) in count while extracting isometrics we are getting error.

what is significance of this error.

IThanks

Top Replies

Corrado Galluzzi 2 months ago +1

Have you run Data Consistency Check for that pipe? Double check that SHU connecting P-Points are numbered correctly (from 1 to 9)
Kiran Bachhav 2 months ago in reply to Emmanuel Desiderio +1

Thanks but now it is solved by changing Ppoints of shu.
Kiran Bachhav 2 months ago in reply to Corrado Galluzzi +1

we changed P-Points numbered as P1 to P9 are reserved for connections in 3.1 version.

Corrado Galluzzi 2 months ago

Have you run Data Consistency Check for that pipe?

Double check that SHU connecting P-Points are numbered correctly (from 1 to 9)
Cancel
Vote Up +1 Vote Down

Sign in to reply

Cancel
Kiran Bachhav 2 months ago in reply to Corrado Galluzzi

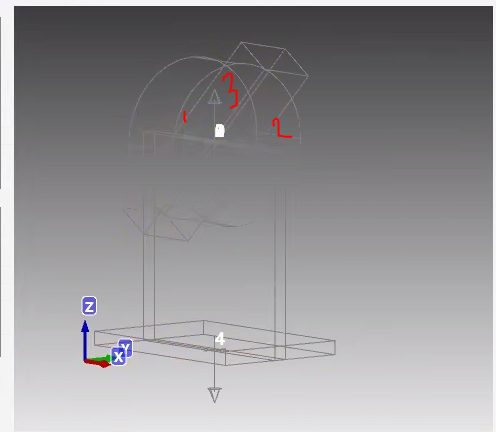

Yes, we did it. no data inconsistency we have numbered p-points for shu as per image. there are only 4 p-points in shu catalogue
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Emmanuel Desiderio 2 months ago

Hello, do you have Repeatability enabled in your Isodraft settings? Or do you have manual splitting points? I suspect that the overflow error is maybe caused by too many elements being crammed by Isodraft in one drawing sheet.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Kiran Bachhav 2 months ago in reply to Emmanuel Desiderio

Thanks but now it is solved by changing Ppoints of shu.
Cancel
Vote Up +1 Vote Down

Sign in to reply

Cancel
Kiran Bachhav 2 months ago in reply to Corrado Galluzzi

we changed P-Points numbered as P1 to P9 are reserved for connections in 3.1 version.
Cancel
Vote Up +1 Vote Down

Sign in to reply

Cancel
Corrado Galluzzi 2 months ago in reply to Kiran Bachhav

Thanks for the feedback, Kiran!
