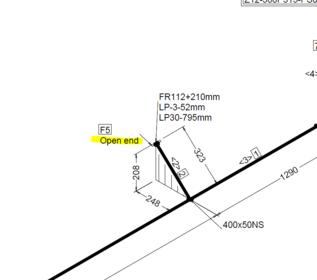

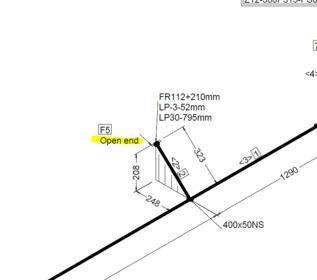

Open pipe end text

Torkild Lekve
Torkild Lekve over 5 years ago

  • Sign in to reply
  • Cancel
  • Tejas Desai
    Tejas Desai over 5 years ago
    are you creating new branch for connection.
    if yes you can print description of branch.

    if it is just simple tee, you can create and add in Specification a separate tee with Detail text 2 as  "Connected to washing nozzle" and outcom DTXR2 on tees in options file.


    ideally, i would create a piping specialty (Zero model elements) with pipe size and connection details present. and print    Detail text 2 as  "Connected to washing nozzle" and outcom DTXR2 or 3 on PCOM in options file.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Tejas Desai
    Tejas Desai over 5 years ago
    [COLOR=#417394]dongerikongen,[/COLOR][COLOR=#333333] Since you have assigned attribute on flange, it will work just fine. [/COLOR]
    [COLOR=#333333]adding piping specialty with no model element will just aid in tracking procurement status. Even you can tag that  thats why i mentioned.

    [/COLOR]For above issue, you can purchase flangolet. it is integrated olet, pipe nipple with flange. reduces weld at size.

    [COLOR=#333333]:ISOLOOSE is used in Spooler. better create a new UDA in lexicon and standardize it.

    [/COLOR]
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Torkild Lekve
    Torkild Lekve over 5 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Corrado Galluzzi
    Corrado Galluzzi over 5 years ago
    Change TCONN of open branches to VENT.
    Normally you would get "VENT" displayed on the isometric.
    Change it to "Connected to Washing Nozzle" by modifying the corrisponding ATEX (Alternative Text) in the Option File.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Torkild Lekve
    Torkild Lekve over 5 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Corrado Galluzzi
    Corrado Galluzzi over 5 years ago
    You are welcome!!!
    I close this thread then..
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Torkild Lekve
    Torkild Lekve over 5 years ago
    I will make a piping speciality for other references I may need/want, and for this washing nozzle I will go for corrado's VENT-solution.

    Thank you both, Tejas and corrado, for your answers. You guys rock!
