Aveva Pipe Stress Interface (PSI) compatibility with CAESAR II Ver13 (2023)

Hi all,

I am facing issues exporting Aveva generated .cii file to CAESAR II Ver13 software. When i try to convert the .cii to .c2 file, CAESAR II has problem reading even the first line of the .cii file. DId anyone manage to open the AVEVA .cii using CII Ver13 software before? Or they are not compatible?

TIA.

Top Replies

Corrado Galluzzi over 1 year ago in reply to Nicholas Chai +1

You must play with this: These expressions are supplied by default by Aveva The ones in the red box are for supports

Parents

Corrado Galluzzi over 1 year ago

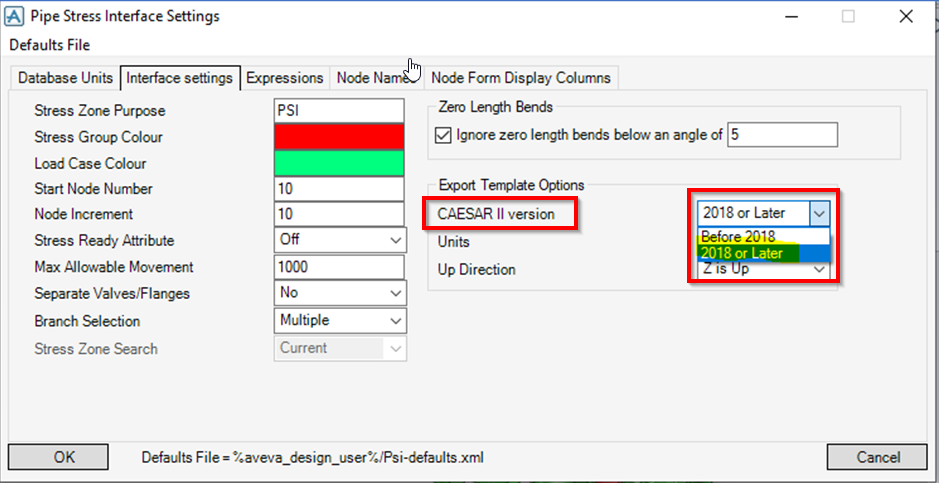

Try with this:
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Nicholas Chai over 1 year ago in reply to Corrado Galluzzi

Thanks dude, it works well. We managed to open the .cii generated by E3D. Now we are facing difficulties to extract the support tag and line number attributes.from e3d to CII. Anyone know the solutions for this?
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Corrado Galluzzi over 1 year ago in reply to Nicholas Chai

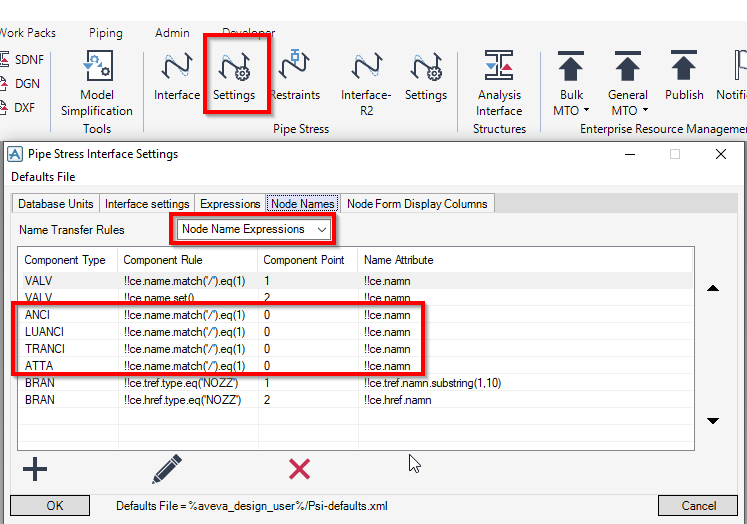

You must play with this:

These expressions are supplied by default by Aveva

The ones in the red box are for supports
Cancel
Vote Up +1 Vote Down

Sign in to reply

Cancel

Reply

Corrado Galluzzi over 1 year ago in reply to Nicholas Chai

You must play with this:

These expressions are supplied by default by Aveva

The ones in the red box are for supports
Cancel
Vote Up +1 Vote Down

Sign in to reply

Cancel
