Nice work Jevon but still lot of bugs to fix....


Best Regards,
Naresh Tarani

There's not any file was created in folder C:\AVEVA\Plant\PDMS12.0.SP5\pdmswk\CaesarPCF although I did as your instruction. Please clarify this concern, Jevon!

Thanks

[QUOTE=pdms120;73556]There's not any file was created in folder C:\AVEVA\Plant\PDMS12.0.SP5\pdmswk\CaesarPCF although I did as your instruction. Please clarify this concern, Jevon!

Thanks

Did you select someitems on the list befor click Export button?

Yes, of course! I chose a Pipe (included 03 branches) then click export. The folder CaesarPCF is automatically created but there's not any file included in. Please check and advise me more, thanks!

Select the pipes after adding them to CaesariiPCF form...then click EXPORT button



Hi Jevon! Have you PCF format specification? I did'n find it in internet. Can you share it, please?

Hi Jevon! Have you PCF format specification? I did'n find it in internet. Can you share it, please?

The PCF format from intergraph. You can refer ISOGen software guide docmentaion.

Hi Jevon
with many thanks for your macro
When I run this macro in design and click export button but below error will be occur

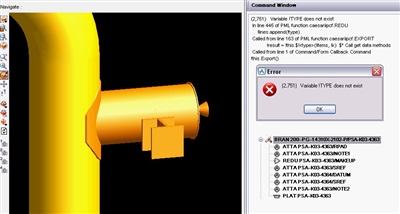

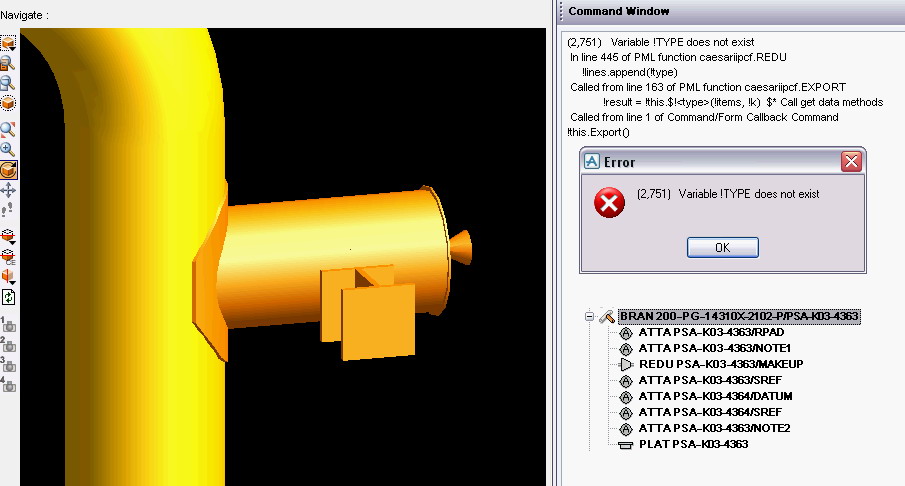

"(2,812)   Variable is not of the expected dimension of format object(L)"

please help me in this regards,
Best Regards,
B.L
