Hi! Getting Error while exporting to PCF file for stress analysis purpose. Only lines containing bends in E3D design are resulting with this error.

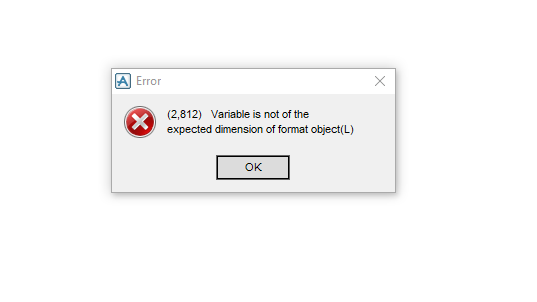

Below is the error message snap. please advice
(2,812) Variable is not of the expected dimension of format object(L)
In line 283 of PML function caesariipcf.BEND
!strAngle = !angle.string(!this.angleFormat)
Called from line 167 of PML function caesariipcf.EXPORT
!result = !this.$!<type>(!items, !k) $* Call get data methods
Called from line 1 of Command/Form Callback Command
!this.Export()
