During export the .rvm file from PDMS, how to make the .rvm file iwith a nsulation transparency of 75%, just by using PML language

I'm not sure if there is another way or a better way in E3D, but from PDMS until E3D what I do is I extract 2 RVMs 1 without insulation and 1 with insulation. Then open/merge the 2 RVM in naviswork, then set transparency as per requirement.

Hope this helps.

Cheers,
Edgar

Thanks, I will try it.

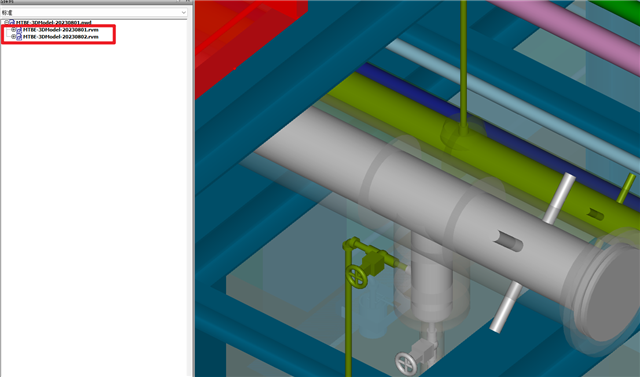

I tried, it works, thanks. But a little inconvenience about the interface in the Navisworks when opening, there two .rvm file will both show, maybe the user (client) is puzzled about it.

I add _INSULATION into the name of the RVM with insulation, that way it would be easier to understant for the client.

export file "P:\M-3DModel-20230801.rvm"
export encoding utfeight
export filenote ''
export holes on
export autocolour displayexport on
export repr on
repre lev 6
repre insu on TRANSLUCENCY 75
repre lev pipe 5
repre lev nozz 6
repre lev struc 6
export /A-UNITS
export finish

This should work.

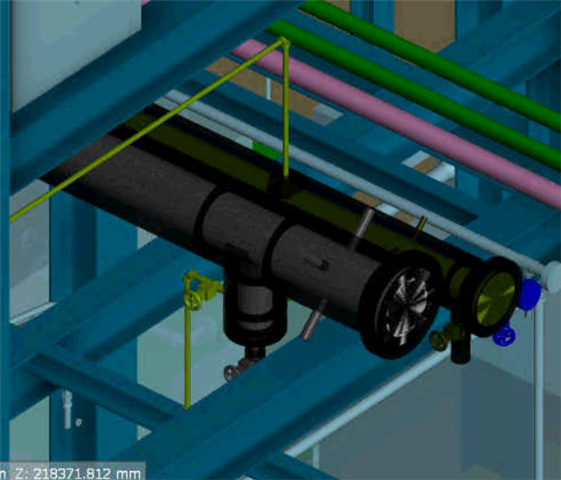

But When I import rvm into the Navisworks, the color of insulation layer is a little black. See below pic.

...

Thanks Guru.

Do you know why the insulation layer become black in Navisworks, not so clean transperancy as in PDMS

hello, guru, the color of insulation layer is black, do u know how to solve it？

I saw on youtube one video about this issue. You can refer to it:
www.youtube.com/watch
