Dear Experts,
Is there any one who get some solution in creating view using defined limits and drawlist using Macro?
I have created one macro for same but it fails to clip the view in elevation, that is showing some of the members beneath that lower limits and above view's Upper Limits.
Will be helpful if any suggestion can be shared.
Regards,

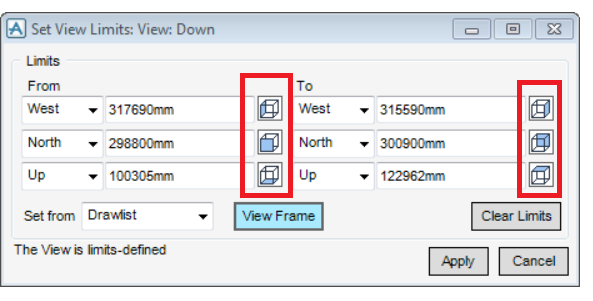

You can look on how the E3D 2.1 Draw, Modify View Limits form works,
when you toggle one of the buttons beside the coordinates and click Apply button,
then a VSEC element will be created under the VIEW hierarchy in the Draw Explorer.

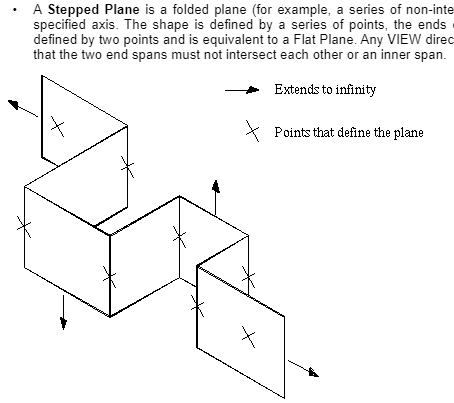

In my understanding, the clipping in Draw is not only limited to a simple 3D Box.
This is useful because rooms are not always box shaped.
Online Help AVEVA reference:
https://help.aveva.com/AVEVA_Everything3D/2.1/wwhelp/wwhimpl/js/html/wwhelp.htm#href=DRUGP/DRUGP6.06.01.html#1017594
