Translucency from PDMS to Navisworks



okay, thankyou very much for your test and reply.... now i have to check with IT dept. whether they have Simulate and it's license.

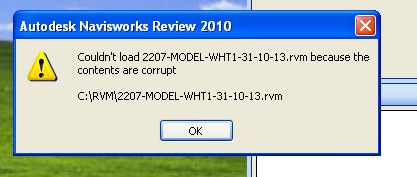

yes. thats the same error i encountered when i open RVM with export representation on in Naviswork Review.



Hi Cutesmile,

Thankyou for your support, i got the result after i added the below lines in my export file.

EXPORT REPR ON
REPR INSU ON TRANSLUCENCY 25

You're Welcome.

Good to know it work well.

I am not sure of the combination for the "Find Items". Could you provide an example please?

Sorry, I should have included this earlier quote to help explain....

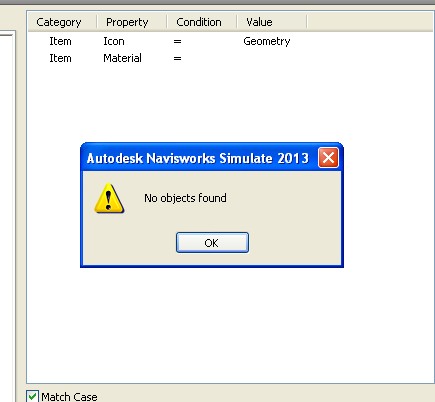

Try this, Export RVM file with Insulation on and the EXPORT REPRESENTATION ON (PDMS 12.0). But the RVM file will open in NAVISWORK SIMULATE only. I was using Naviswork Simulate 2012. From there, find the objects with CAtegory = Items, Icon = Geometry and Material is blank. this will select all the insulation objects, and just override the transperancy.

It's working now. thank you
