Z+f pointcloud data to Navisworks or Review

Hi,

Does anyone know if this can be done?

I have all of the latest Navisworks modules, Review Reality modules, PDMS modules and LFM software.

The pointcloud data is very big - it is on an external 1000 gig high speed drive, and almost fills this.

For the cloudpoint data, I have a whole bunch of files such as; .alk .ano .cfg .lfr .lwk .lfd .points .int files.

I can currently bring the point cloud data into PDMS via lfmServer.exe, but would really like to see the bigger picture.

Am i living in dream land, or can this be done????

Regards,

Neil

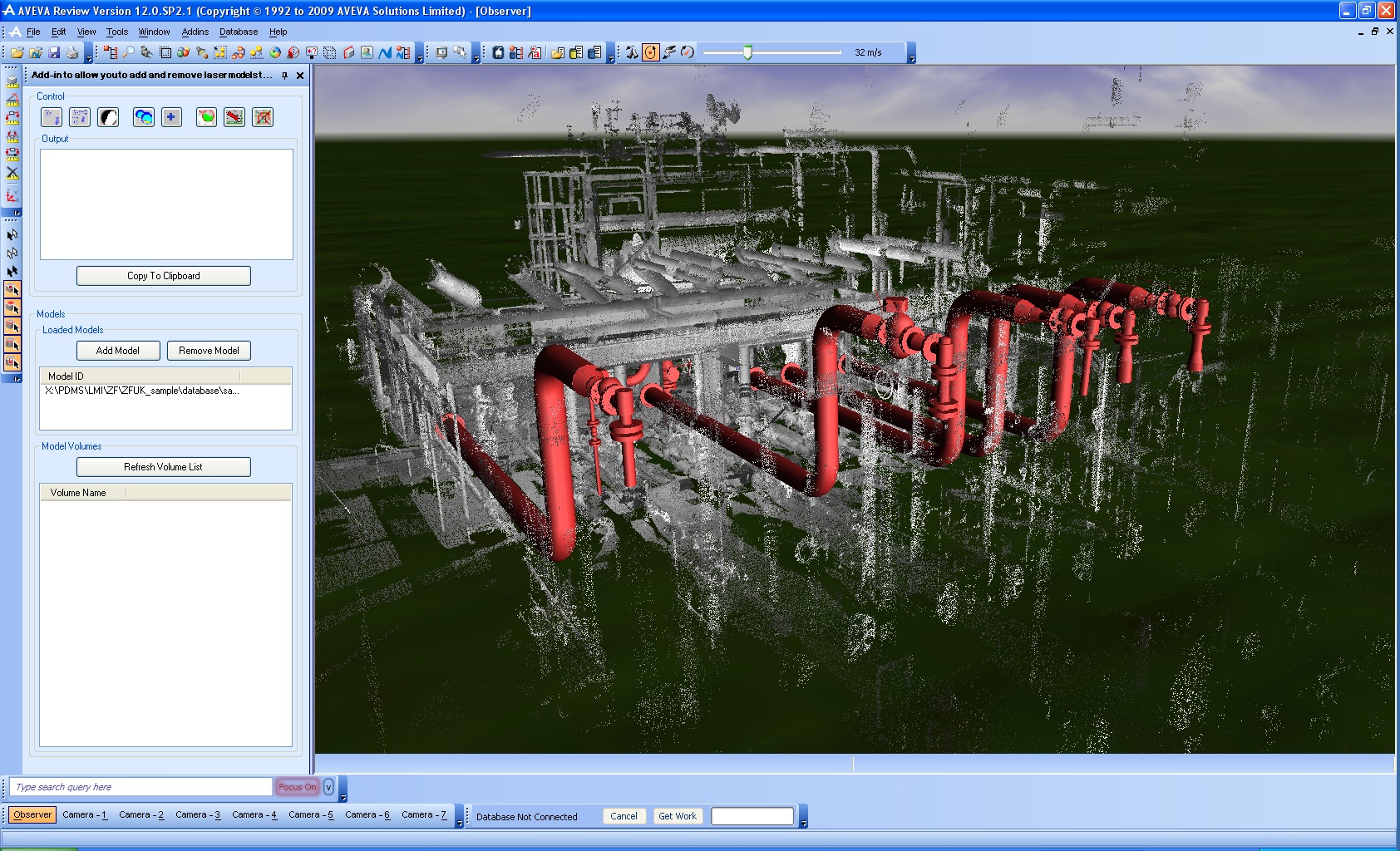

You can use ZF and AVEVA Review if you would like.  I don't really understand your question though.

Thanks for the reply.

I am currently working on a job for a large offshore rig that was built 35ish years ago.
We are in the process of designing 2 new large modules to replace some of the existing ones.

There is essentially no 3D model of the existing platform (with the exception of a little bit of primary steelwork that the struccie's have built from the existing drawings).

We do however have the Z&f (.lfd and .points) from a recend laser scan.
These are linked via lfmserver to the PDMS model. This is great for modelling some of the tie-in's for specific locations, but not so great for visualising the platform in whole.

In short, what I am essentially trying to do is create a new .rvm, or .nwd file showing the cloudpoint data so that I can open it in either review and include other files exported form PDMS showing the brownfield scope.

Is this possible, and if so how do I do it????

Cheers, Neil



Hi, we are using Leica Cloudworx to view the pointcloud files in PDMS. May i know how to export & view this pointcloud files in Navisworks freedom? I have Navisworks manage 2011.

Please helpw

Is there anyway to export the laser scan (XGEOM) INTO NAVISWORKs with the .rvm file?

I'd really appreciate that.

No it is not possible. RVM files manage 3D elements only.

I think Naviswork can import laser data directly

I have just checked with my colleague Graham ( Laser Survey guru :-) ) : "Point Cloud Manager (previously known as LFM Server) has a CADlink to Navisworks so although you cannot export the XGEOM in the RVM you can access the point cloud in NAVISWORKS. So you can export your PDMS/E3D model to RVM and load up the point cloud in NAVIS"

HTH

Thanks for the reply. Yes, Navisworks import laser data, but only .rcp and .rcs, leica..

Regarding this CADlink to navisworks, what is it? Another licence ? I've neve done something similar

My best regards
