Model Review Software General Gaskets not appearing in Navis

Gaskets not appearing in Navis

rahul mali over 10 years ago

rahul mali over 10 years ago

Dear all,

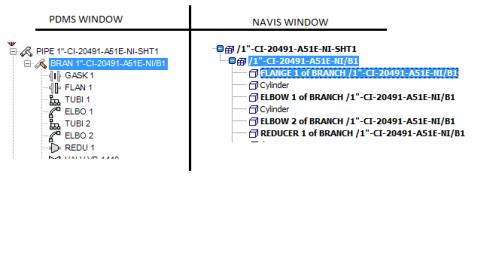

I am generating navis model but I am not able to see the gaskets and attachments in the selection tree window. This may be because they don't have any geometry in PDMS.
How to make it visible in the selection tree?
Please help.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
rahul mali over 10 years ago
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Sri over 10 years ago

How the navies was generated?
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Lynda Rodriguez over 10 years ago

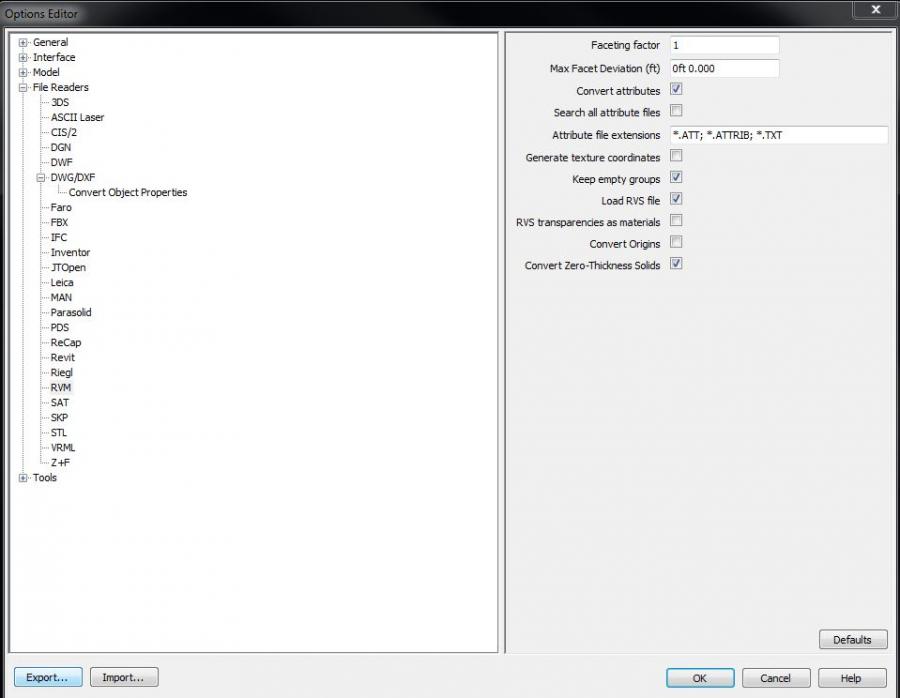

Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
rahul mali over 9 years ago

Hi Iyndarod,
Thanks a lot. It worked.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Admin over 9 years ago

you must create geometric for gasket for it
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
THIRUNAVUKKARASU R over 2 years ago in reply to Lynda Rodriguez

This didn't work for me. same issue. gasket is not showing up in navis. please help
