Getting obstruction volume with colours in .nwd file



in our case, we extract different RVM for each (MODEL, OBSTRUCTION, INSULATION) and merge it in one NWD
this is our way so we can control the color in the NWD.

We will just change the translucency in NAVIS

Hello,
Thank you for the reply, but I am looking for automated task, is it possible in Navisworks to automate changing translucency and colour of selected elements in batch script. if so please let me know.

Best regards
Kunal

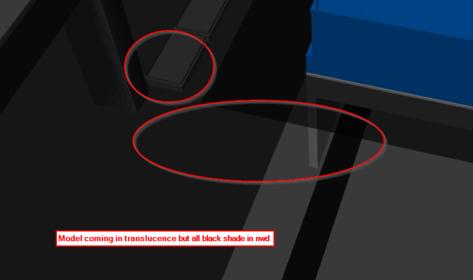

Hello, we are experiencing the same with our project. When we export the PDMS model to Review Reality, obstruction and insulation have the same colors as with the PDMS. But once converted to Navisworks, all obstruction and insulation are in color dark. Though I can change the transparency and colors of those, it would be much okay to automate the process.

Please help. Thank you in advance.

create  NWF file with settings.
once created, you can schedule a batch file for NWD generation.

create  NWF file with settings.

Can you please elaborate about this NWF.
