create blind flange heading(FBLI)


  • Hi All

    I created a spec and i cann't find blind flange heading(FBLI) in "standard heding"
    I want to have 2 headings:
    1.for all flanges (sw,bw,...)
    2.for blind flange

    Regards,
    Alireza
  •

    --
    -- Standard headings For Specification Creation.
    -- =============================================
    --
    Heading Type = ATTA
    1,TYPE,-1,-
    2,PBOR,0,-
    3,SHOP,-1,=
    4,STYP,-1,=

    Heading Type = BEND
    1,TYPE,-1,-
    2,PBOR,0,-
    3,SHOP,-1,=
    4,STYP,-1,=

    Heading Type = BOLT
    1,TYPE,-1,-
    2,BDIA,-1,-
    3,BTYP,-1,STUD
    4,BSEL,-1,A

    Heading Type = CAP
    1,TYPE,-1,-
    2,PBOR,0,-
    3,SHOP,-1,=
    4,STYP,-1,=

    Heading Type = CLOS
    1,TYPE,-1,-
    2,PBOR,0,-
    3,STYP,-1,=
    4,SHOP,-1,=

    Heading Type = COUP
    1,TYPE,1,-
    2,PBOR,1,-
    3,PBOR,2,-
    4,SHOP,-1,=
    5,STYP,-1,=

    Heading Type = CROS
    1,TYPE,-1,-
    2,PBOR,0,-
    3,PBOR,3,-
    4,SHOP,-1,=
    5,STYP,-1,=

    Heading Type = ELBO
    1,TYPE,-1,-
    2,PBOR,0,-
    3,SHOP,-1,=
    4,STYP,-1,=

    Heading Type = FBLI
    1,TYPE,-1,-
    2,PBOR,0,-
    3,SHOP,-1,=
    4,STYP,-1,=

    Heading Type = FILT
    1,TYPE,-1,-
    2,PBOR,0,-
    3,SHOP,-1,=
    4,STYP,-1,=

    Heading Type = FLAN
    1,TYPE,-1,-
    2,PBOR,0,-
    3,SHOP,-1,=
    4,STYP,-1,=

    Heading Type = FTUB
    1,TYPE,-1,-
    2,PBOR,0,-
    3,SHOP,-1,=
    4,STYP,-1,=

    Heading Type = GASK
    1,TYPE,-1,-
    2,PBOR,0,-
    3,SHOP,-1,=
    4,STYP,-1,=

    Heading Type = INST
    1,TYPE,-1,-
    2,PBOR,0,-
    3,SHOP,-1,=
    4,STYP,-1,=

    Heading Type = INSU
    1,TYPE,-1,-
    2,TEMP,-1,-
    3,PBOR,0,-

    Heading Type = LJSE
    1,TYPE,-1,-
    2,PBOR,0,-
    3,STYP,-1,=
    4,SHOP,-1,=

    Heading Type = OLET
    1,TYPE,,-
    2,PBOR,0,-
    3,PBOR,3,-
    4,SHOP,-1,=
    5,STYP,-1,=

    Heading Type = PCOM
    1,TYPE,-1,-
    2,PBOR,0,-
    3,SHOP,-1,=
    4,STYP,-1,=

    Heading Type = REDU
    1,TYPE,1,-
    2,PBOR,1,-
    3,PBOR,2,-
    4,SHOP,-1,=
    5,STYP,-1,=

    Heading Type = SHU
    1,TYPE,-1,-
    2,PBOR,0,-
    3,SHOP,-1,=
    4,STYP,-1,=

    Heading Type = TEE
    1,TYPE,,-
    2,PBOR,0,-
    3,PBOR,3,-
    4,SHOP,-1,=
    5,STYP,-1,=

    Heading Type = TRAP
    1,TYPE,-1,-
    2,PBOR,0,-
    3,SHOP,-1,=
    4,STYP,-1,=

    Heading Type = TUBE
    1,TYPE,-1,-
    2,PBOR,0,-
    3,SHOP,-1,=
    4,STYP,-1,=

    Heading Type = UNIO
    1,TYPE,-1,-
    2,PBOR,0,-
    3,SHOP,-1,=
    4,STYP,-1,=

    Heading Type = VALV
    1,TYPE,-1,-
    2,PBOR,0,-
    3,SHOP,-1,=
    4,STYP,-1,=

    Heading Type = VFWA
    1,TYPE,,-
    2,PBOR,0,-
    3,PBOR,3,-
    4,SHOP,-1,=
    5,STYP,-1,=

    Heading Type = VTWA
    1,TYPE,-1,
    2,PBOR,0,
    3,SHOP,-1,=
    4,STYP,-1,=

    Heading Type = WELD
    1,TYPE,-1,-
    2,PBOR,0,-
    3,SHOP,-1,=
    4,STYP,-1,=


  • Hi Mr. Corrado, just like to ask if it is possible to import the  previous file you've attached to edit the headings of specs using E3D? Thanks in advance.

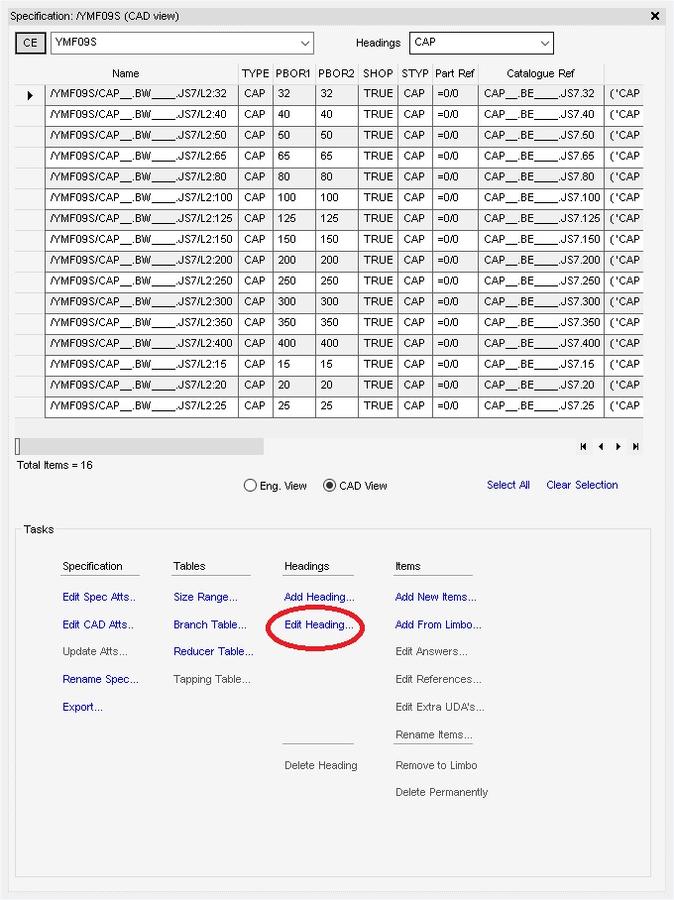

  • Using the edit heading i cant use the (use selected headings) button
  • The file should work ok with E3D too.
    Could you please post some pictures of what's wrong?
  • Probably there is something "broken" in your spec.
    The new user interface doesn't like it.
    I would export it on a file via SPECONMODE, fix it with a text editor and load it back.
