• [QUOTE=BEHERA;117881]Dear all

    how to find defaults skey in pdms(already created by aveva)-correct me if i am wrong
    refer snap - i want to remove "set on tee" from remarks has it something to do with skey refr snap 1 and 2 for skey used

    please help

    Try ATEXT 378

    By default, ATEXT 378 is 'SETON TEE'

    Replace in Option file as below :-

    ATEXT 378 ''

    HTH

    [COLOR="silver"]- - - Updated - - -[/COLOR]

    SKEY (SYMBOL KEY) is representation of 3D component in Isometric Drawing as per P-Point, GTYPE of component.

    If you refer Isometric Reference Drawing, you will find many things which you can controlled by ATEXT (Alternative Text).

    I will recommend you to refer Isometric reference Manual & Isometric user Guide for better understanding of Isometric Drawing behavior.

    HTH
  • [quote=paragnewe;117895]try atext 378

    by default, atext 378 is 'seton tee'

    replace in option file as below :-

    atext 378 ''

    hth

    - - - updated - - -

    skey (symbol key) is representation of 3d component in isometric drawing as per p-point, gtype of component.

    If you refer isometric reference drawing, you will find many things which you can controlled by atext (alternative text).

    I will recommend you to refer isometric reference manual & isometric user guide for better understanding of isometric drawing behavior.

    Hth

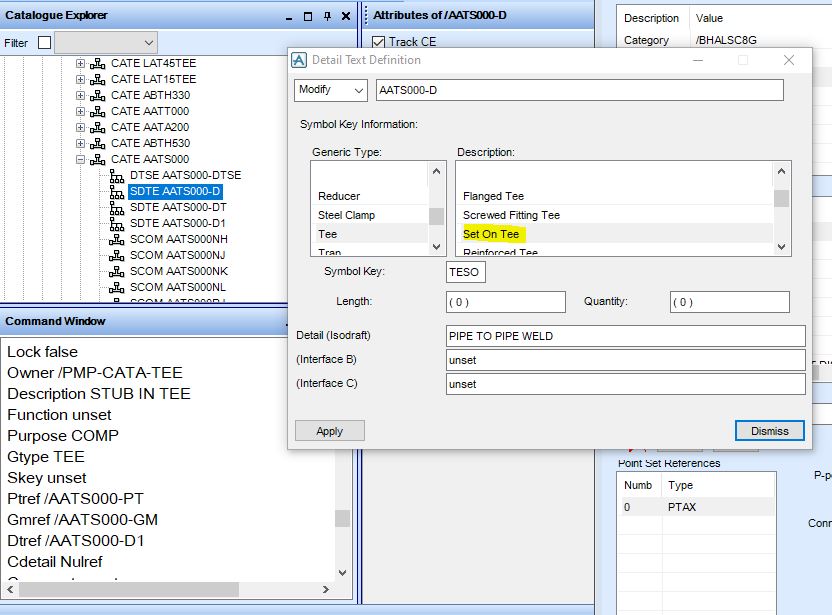

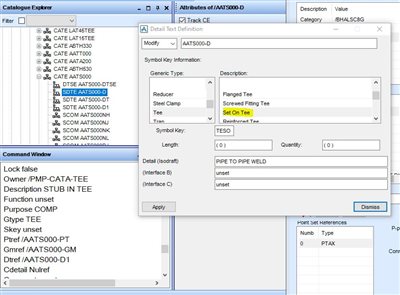

    yeah thankx for the reply , i ALSO found this under atext
