Extend ends in beams.,Extend ends in beams.



Have you tried double-clicking on it and extending it by grabbing the arrow grip?

Hi,
for SCTN you can modify position of START and END point. When you like to use command line then:
- first of options is set new position of START od END point.  Q POSS POSE return position of START and END of SCTN, then command POSS E123mm N456mm U0mm modify position of start. Similar for end.
- other option is use command EXTEND. To move start point you can use example: EXTEND START 250mm or to move END point EXTEND 300mm


PDMS/E3D have many ways to extend SCTN.

There are several ways indeed, but the point is EXTEND does not function as pml command anymore. So to extend the start or end now the direction and position of the start or end must be known and then move start or end to new calculated position. So not as easy as it was.
Of course as Corrado said you use grips and drag, usefull of course for one SCTN or GENSEC.

BR
N

Hi , do you guys know of commands to extend GENSEC ?. the SCTN ones dont work on them i suppose

We wrote an object to manipulate straight GENSECs (GENSECS with only two POINS under the spine). It is not complicated.

!!geomgensec.extend(!end, !dist) where !end = |S| or |E| and !dist = +/- REAL
etc.

But it is used more in code than from the command line

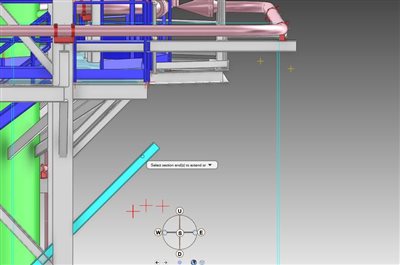

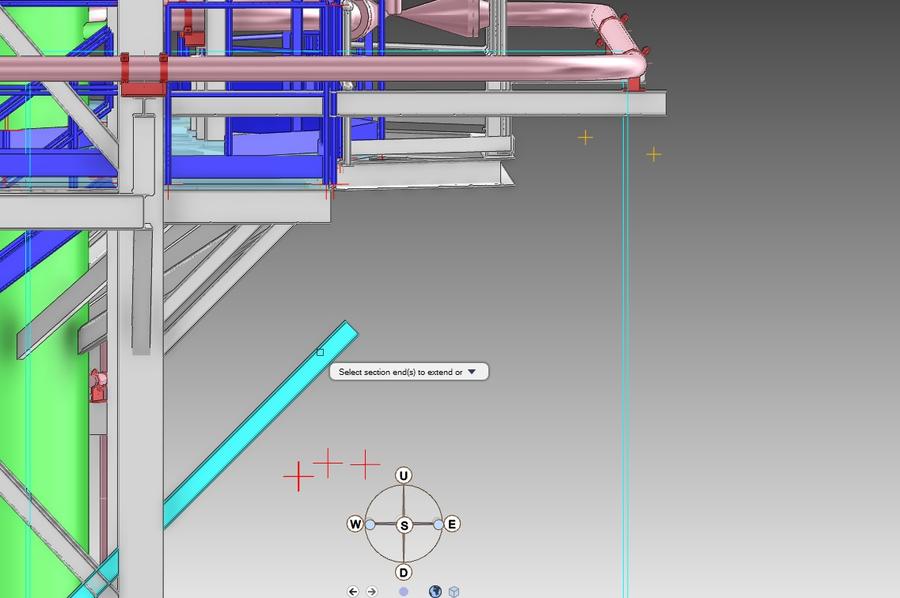

In ED3.1, double clicking on a GENSEC allows you to drag the grips or specify the "extend" distance
