PDMS Macro For Fill & Unfill of cable tray,PDMS Macro For Fill & Unfill of cable tray


  • Hello! Guys,

    Hope you all are doing well in your carrier.

    I know you all are well experienced people that's why i want your kind help.

    I want macro for Fill and Unfill of cable tray in PDMS.

    we just paste macro in command window and the branch will get fill and same for unfill. This type of macro i want to developed.

    Yes!! i don't have any knowledge of macro programing that's why i have asked help from you well experienced people.

    CAN ANYONE HELP??
  • Could you give little idea about fill and unfill...Do you mean fill means you want to add weight to tray ?
  • Yes!! Sure.

    In Pipe modelling when two components are created than straight run of pipe between two components are filled or created automatically.

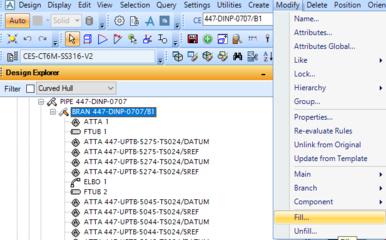

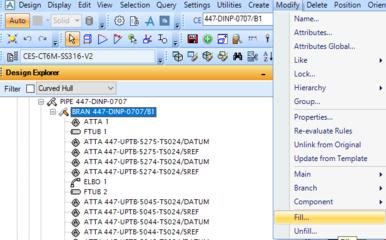

    But in cable tray after creation of components we have to go in Mordify>Fill>Ok after selecting that Branch in hiearchy.

    And for Unfill of Cable tray again we have select that perticular branch and go to Mordify>Unfill>Ok.

    This is very time consuming if you are working in bulk of tray.

    So that's why i want some help to develop Macro.

    [COLOR="silver"]- - - Updated - - -[/COLOR]

    Yes!! You are right it's working great.

    This is very time consuming if you are working in bulk of tray.

    So that's why i want some help to develop Macro.
  • Pipework modeling is of different approach since auto spool system generated (Pipe Spool) is already acceptable and detailed items e.g. MTO, spool pieces & others are shown on the piping isometrics but in cable trays I'm not sure if you do also this kind of isometric drawings.

    Cable trays / ladders also does auto spool the same as with the pipework but the you need to FILL the tray / ladder according their specs for the actual graphical representations and for MTO. Moreover if you want to create a much more automated macro for this, you need to start to read and understand the pml macros in order to do your own customization. Try to look for this macro files in your PDMSUI / PMLUI to have a good idea to start.
    FFILL IFILL FFILL MFILLB MFILLCC MFILLSC MFILLCE
  • Sorry.... But Not Understand what you are telling to do.

    How can i look this macro [COLOR=#333333]FFILL IFILL FFILL MFILLB MFILLCC MFILLSC MFILLCE in my  [/COLOR]PDMSUI / PMLUI
  • You can get the location of your PDMSUI / PMLUI, type in the command line;
    Q EVAR PDMSUI
    Q EVAR PMLUI


    Search the files on the given directory in your command window. Files are located on this directory as for my case and may vary depending on the version you're using.
    C:\AVEVA\Plant\PDMS12.1.SP4\PDMSUI\des\cabl
    C:\Program Files (x86)\AVEVA\Everything3D2.XX\PMLUI\des\cabl
