The MARK command

Thomas Back
Thomas Back over 18 years ago

  • Sign in to reply
  • Cancel
  • Thomas Back
    Thomas Back over 18 years ago
    If you want to show some text on specific elements in design the MARK command can be used to easily accomplish this.

    An example of the syntax for the MARK command is:
    MARK WITH ( displaytext ) ALL ( selection ) WITH ( criteria ) FOR CE

    Where,
    displaytext   can be anything that evaluates to a text string. A few examples:
    NAME OF CATREF
    'Bore: ' + STRING(CPAR[1])
    selection is one or more element types that should be marked.
    criteria is the selection rule that applies.

    To remove all marks from the display, write UNMARK ALL

    /Thomas
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Christopher Vitte
    Christopher Vitte over 18 years ago
    That is an excellent post TBack,   another good tip is the

    [COLOR="Red"]AID CLEAR ALL[/COLOR] command

    I had to use this alot in class, when extra aids are left on the screen after a user closes a window incorrectly, this will clean the axes, mirror plane, extention plane etc. off the screen,

    [COLOR="Lime"]EXTRA TIP[/COLOR]
    ((just make sure you don't have any contructs that you want to keep before you clear them))
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Cheri Hook
    Cheri Hook over 17 years ago
    MARK WITH (NAME) ALL (EQUIP) works
    but MARK WITH (NAME) ALL (PIPE)  does not.
    any suggestions for marking PIPES WITH NAME ?
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • avwf_de_ding

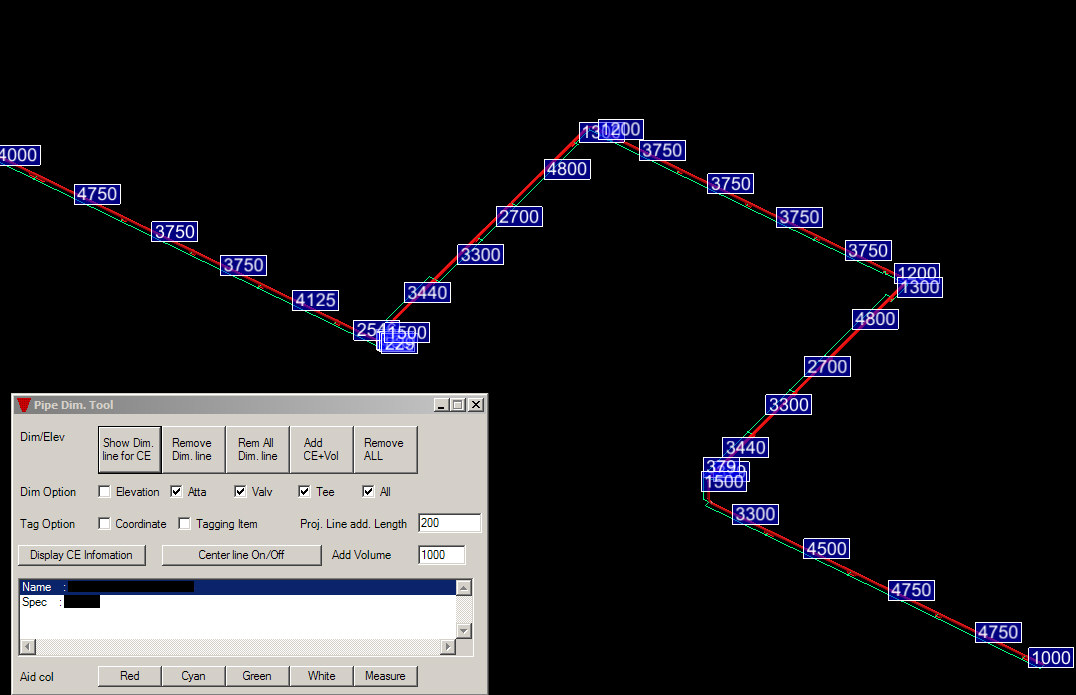

    avwf_de_ding over 17 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Javad Ganjei
    Javad Ganjei over 17 years ago
    Thanks alot De for your sharing;
    Thats very nice quick tool.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Javad Ganjei

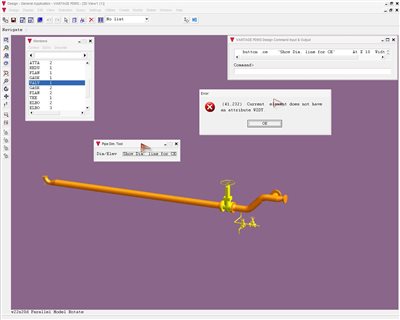

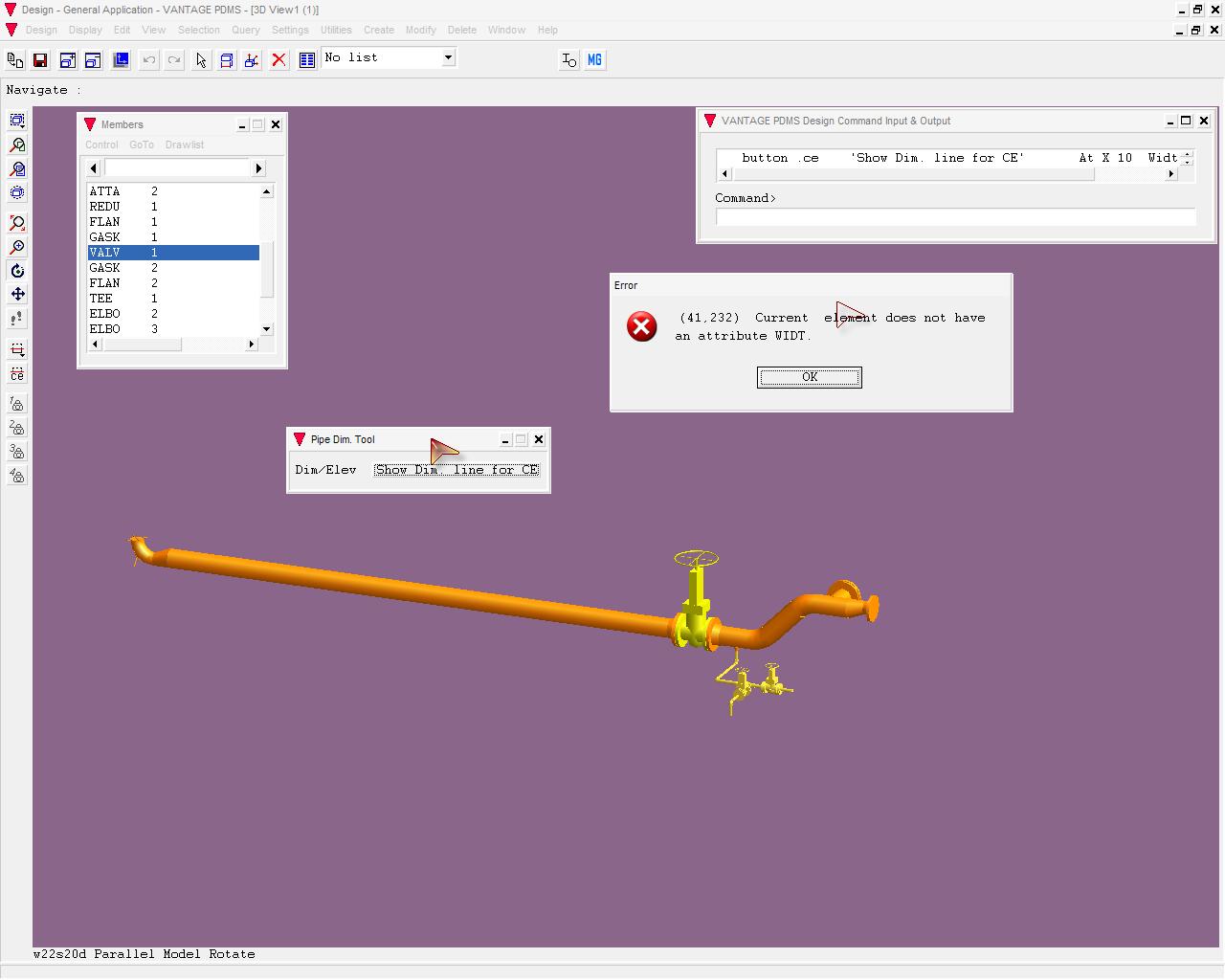

    Javad Ganjei over 17 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • avwf_de_ding
    avwf_de_ding over 17 years ago
    Are u using PDMS11.6 SP4?
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Javad Ganjei
    Javad Ganjei over 17 years ago
    No.i use from PDMS 11.5 SP2
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Cheri Hook
    Cheri Hook over 17 years ago
    We're trying to do some quick screen shots with the instruments tagged with the name and the elevation.

    MARK WITH (NAME) ALL (INST)  - this works

    MARK WITH (name and pos [3] ) ALL (INST)  - trying to mark the instrument with the Elevation.  ?? Do you know the correct  syntax to do confused_smile:
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Neil Dryden
    Neil Dryden over 17 years ago
    Hi chook try this :-

    MARK With (STRING(POS[3]) + NAME) ALL INST

    Or put the required INST in a list and run
    MARK With (STRING(POS[3]) + NAME) CE

    Cheers
    Neil
