How to Creat Snipe at the End of a Section & Cut Notch in T-Section



You need to use a FITT. And a TMPL, set the ZDIS of the FITT to Prop 0 for the start or Prop 1 for the end of the SCTN. In the TMPL you can then use a NXTR to cut away the parts you don't want.
The same method can be used for the notches you want. You can set the ZDIS of the FITT to correspond to the position along the SCTN that you want the notch.
Do a search on here, I am sure there is plenty of info about FITT, TMPL etc.
alternatively, if the end of the SCTN is connected to another SCTN does you company not have a set of catalogue joints that includes sniped cuts etc?

[QUOTE=Rambabu78;101907]Dear Friends,

Can anybody help me,
I am trying to do Snipe T-section End (Snap Attached), but getting,

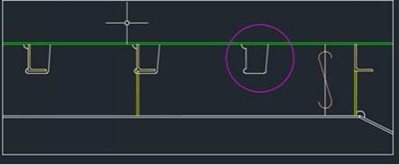

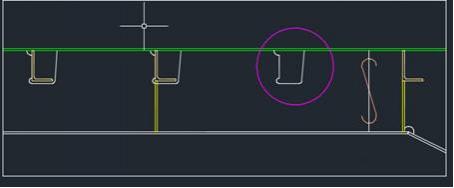

also don't know how to create Notch on Section.

anybody Knows, Please Share.


You will need to create such  NEW joints in paragon and assign same in design.

Thanks for Reply, I am new to Structural, not clear how to create Fittings.
i am going try but if can explain bit detail, that will be great.

I would recommend to attend a Structural Catalogue & Specifications Training Course then...

@Rambabu78[COLOR=#3E3E3E]
[/COLOR]You can watch how to create joint and use it here:
[video=youtube;28yuyqQ9Zr4]www.youtube.com/watch
