how to use Polyhedron Element (POLYHEDRON) ?

how to use Polyhedron Element (POLYHEDRON) ? please share the dblisting for the POLYHEDRON ....

Thanks and regards,

Shivang Kheradiya

  • can you please share one dblist file? I went through documentation but I couldn't implement properly. I need it to import CAD Data from other software.

  • INPUT BEGIN

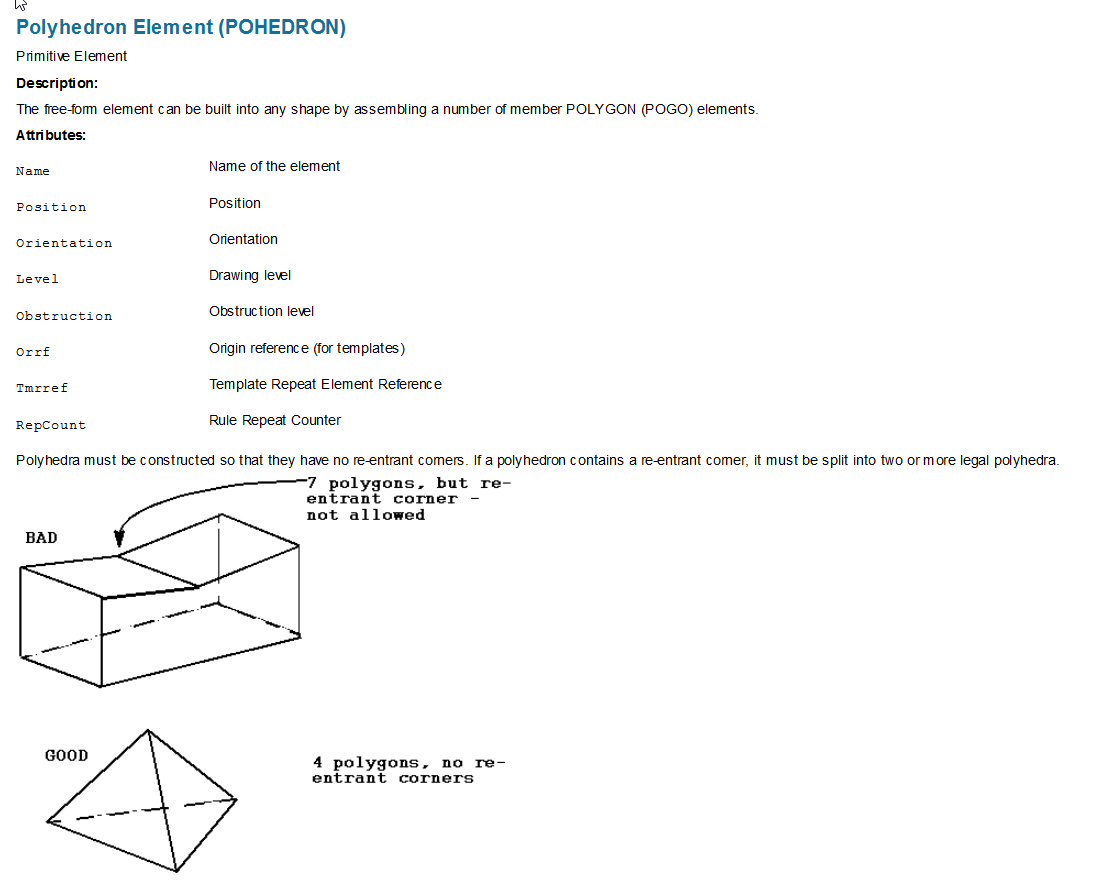

    NEW POHEDRON

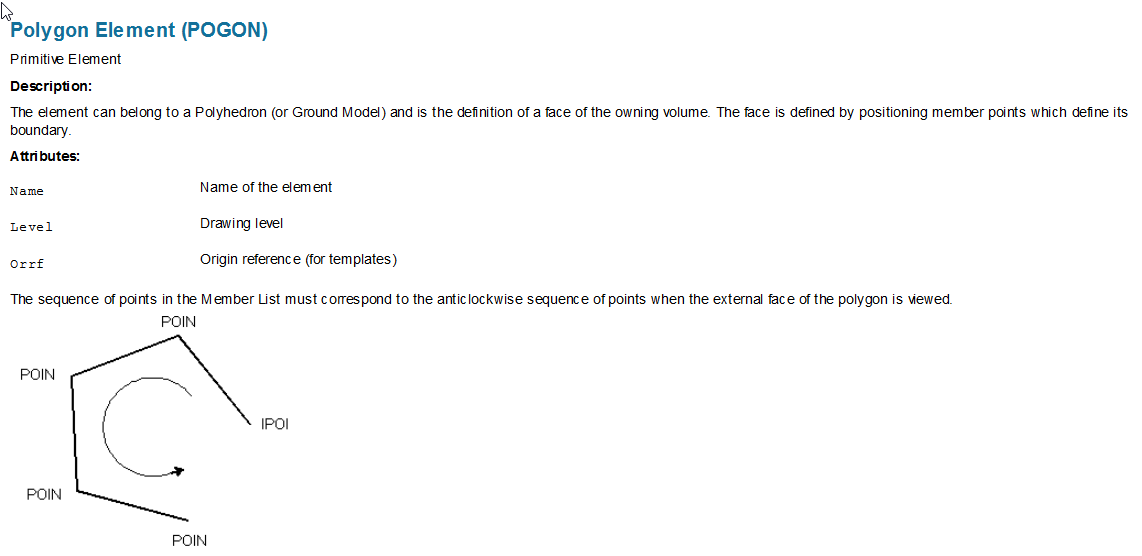

    NEW POGON

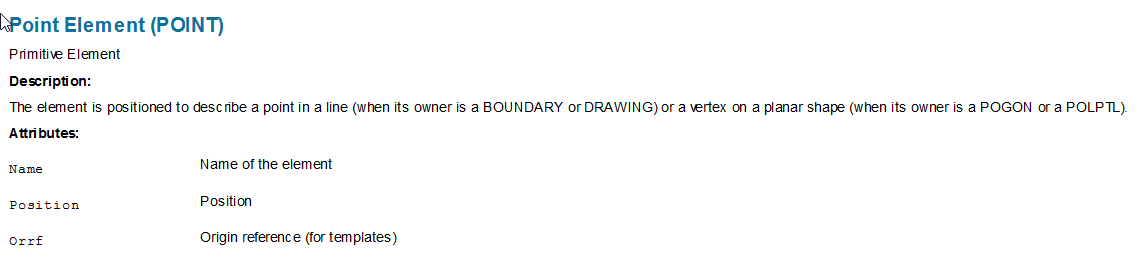

    NEW POINT

    END
    NEW POINT
    POS E 1000mm N 0mm U 0mm

    END
    NEW POINT
    POS E 0mm N 0mm U 1000mm

    END
    END
    NEW POGON

    NEW POINT

    END
    NEW POINT
    POS E 0mm N 1000mm U 0mm

    END
    NEW POINT
    POS E 0mm N 0mm U 1000mm

    END
    END
    NEW POGON

    NEW POINT
    POS E 1000mm N 0mm U 0mm

    END
    NEW POINT
    POS E 0mm N 1000mm U 0mm

    END
    NEW POINT
    POS E 0mm N 0mm U 1000mm

    END
    END
    END
    INPUT FINISH


    Here it is!

    It was my first time, too!

    ;-)

  • Yes, It is awesome. Thanks for the time and sharing Corrado Galluzzi. It's obviously helpful for my purpose. but There is one more element type POLYHE. If possible can you please share more information about POLYHE. I think possibly POLYHE can be more helpful for importing data but don't know implementation.



    Again Thanking you for sharing macro.

  • Here it is!

    I have created a PYRA in E3D, exported it in DGN format and re-imported it ! :

    INPUT BEGIN
    NEW EQUIPMENT /pyra.dgn
    BUIL false
    DSCO unset
    PTSP unset
    INSC unset

    NEW SUBEQUIPMENT
    POS E 0mm N 0mm U 500mm
    BUIL false
    DSCO unset
    PTSP unset
    INSC unset

    NEW POLYHEDRON

    NEW POLPTLIST

    NEW POINT
    POS W 500mm S 500mm D 500mm

    END
    NEW POINT
    POS E 500mm S 500mm D 500mm

    END
    NEW POINT
    POS W 500mm N 500mm D 500mm

    END
    NEW POINT
    POS E 500mm N 500mm D 500mm

    END
    NEW POINT
    POS E 0mm N 0mm U 500mm

    END
    END
    NEW POLFACE

    NEW POLOOP

    NEW LOOPTS

    END
    END
    END
    NEW POLFACE

    NEW POLOOP

    NEW LOOPTS

    END
    END
    END
    NEW POLFACE

    NEW POLOOP

    NEW LOOPTS

    END
    END
    END
    NEW POLFACE

    NEW POLOOP

    NEW LOOPTS

    END
    END
    END
    NEW POLFACE

    NEW POLOOP

    NEW LOOPTS

    END
    END
    END
    END
    END
    END
    OLD LOOPTS 1 of POLOOP 1 of POLFACE 1 of POLYHEDRON 1 of SUBEQUIPMENT 1 of EQUIPMENT /pyra.dgn
    VXREF POINT 1 of POLPTLIST 1 of POLYHEDRON 1 of SUBEQUIPMENT 1 of EQUIPMENT /pyra.dgn POINT 5 of POLPTLIST 1 of $
    POLYHEDRON 1 of SUBEQUIPMENT 1 of EQUIPMENT /pyra.dgn POINT 3 of POLPTLIST 1 of POLYHEDRON 1 of SUBEQUIPMENT 1 of $
    EQUIPMENT /pyra.dgn

    OLD LOOPTS 1 of POLOOP 1 of POLFACE 2 of POLYHEDRON 1 of SUBEQUIPMENT 1 of EQUIPMENT /pyra.dgn
    VXREF POINT 3 of POLPTLIST 1 of POLYHEDRON 1 of SUBEQUIPMENT 1 of EQUIPMENT /pyra.dgn POINT 5 of POLPTLIST 1 of $
    POLYHEDRON 1 of SUBEQUIPMENT 1 of EQUIPMENT /pyra.dgn POINT 4 of POLPTLIST 1 of POLYHEDRON 1 of SUBEQUIPMENT 1 of $
    EQUIPMENT /pyra.dgn

    OLD LOOPTS 1 of POLOOP 1 of POLFACE 3 of POLYHEDRON 1 of SUBEQUIPMENT 1 of EQUIPMENT /pyra.dgn
    VXREF POINT 4 of POLPTLIST 1 of POLYHEDRON 1 of SUBEQUIPMENT 1 of EQUIPMENT /pyra.dgn POINT 5 of POLPTLIST 1 of $
    POLYHEDRON 1 of SUBEQUIPMENT 1 of EQUIPMENT /pyra.dgn POINT 2 of POLPTLIST 1 of POLYHEDRON 1 of SUBEQUIPMENT 1 of $
    EQUIPMENT /pyra.dgn

    OLD LOOPTS 1 of POLOOP 1 of POLFACE 4 of POLYHEDRON 1 of SUBEQUIPMENT 1 of EQUIPMENT /pyra.dgn
    VXREF POINT 2 of POLPTLIST 1 of POLYHEDRON 1 of SUBEQUIPMENT 1 of EQUIPMENT /pyra.dgn POINT 5 of POLPTLIST 1 of $
    POLYHEDRON 1 of SUBEQUIPMENT 1 of EQUIPMENT /pyra.dgn POINT 1 of POLPTLIST 1 of POLYHEDRON 1 of SUBEQUIPMENT 1 of $
    EQUIPMENT /pyra.dgn

    OLD LOOPTS 1 of POLOOP 1 of POLFACE 5 of POLYHEDRON 1 of SUBEQUIPMENT 1 of EQUIPMENT /pyra.dgn
    VXREF POINT 4 of POLPTLIST 1 of POLYHEDRON 1 of SUBEQUIPMENT 1 of EQUIPMENT /pyra.dgn POINT 2 of POLPTLIST 1 of $
    POLYHEDRON 1 of SUBEQUIPMENT 1 of EQUIPMENT /pyra.dgn POINT 1 of POLPTLIST 1 of POLYHEDRON 1 of SUBEQUIPMENT 1 of $
    EQUIPMENT /pyra.dgn POINT 3 of POLPTLIST 1 of POLYHEDRON 1 of SUBEQUIPMENT 1 of EQUIPMENT /pyra.dgn

    INPUT END  EQUIPMENT /pyra.dgn
    INPUT FINISH

    )

  • Thank you so much  for sharing. I am really very thankful for your time and effort.
