Create Valve With Pml

Yes, this is possible with a simple macro like below.

Here we are using reference size wise ATTA components already created in test model and copying them depends on size.

This can be implemented to any other pipe component.

If the valve is having welded end, this macro can be used.

However it may need some improvement if it is flanged type.

var !listc coll ALL FLAN with MATCHW (LCON, 'TUB') FOR CE
do !c indices !listc
$!listc[$!c]
!bbo = lbore
if ($!bbo eq 50) then
new atta copy /50ATTA
elseif ($!bbo eq 80) then
new atta copy /80ATTA
elseif ($!bbo eq 100) then
new atta copy /100ATTA
elseif ($!bbo eq 125) then
new atta copy /125ATTA
elseif ($!bbo eq 150) then
new atta copy /150ATTA
elseif ($!bbo eq 200) then
new atta copy /200ATTA
elseif ($!bbo eq 250) then
new atta copy /250ATTA
endif
CONN
DIST 100
ENDDO

Tank you for your response,

But I think this program could have been much shorter. I just want a valve with a specific stype to appear before a valve with another specific stype. Both types of valves are SW.

I would take a list of gate valve with spref then use new valve choo with stype eq |checkvalve|

then next clea 100

I would appreciate it if you could write the macro for it. Thank you very much.

macro is not required

use SHOW!!CDCLIST for listing

collect you gate valve

then new valve choo with stype |XXXX| conn clear 100

You know that I want another valve to be created 100 millimeters away from this existing valve. But in this program, this does not happen. Please check it yourself. Thank you.

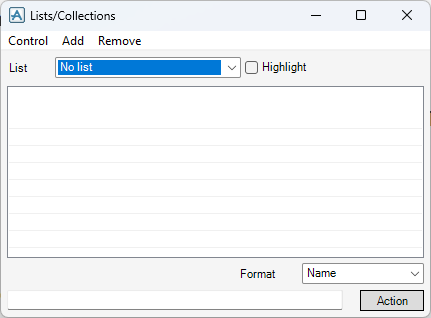

How to add all the required valves here in List. Please guide.

Not clear. What is your concern?

Mr. Sri how to add all the required valves here in List. Please guide.

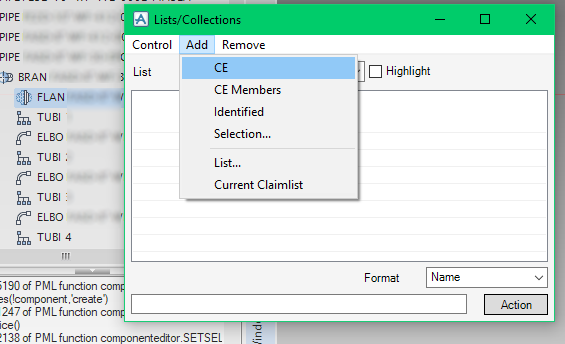

On Top middle, there is ADD tab.

you can click and add as your requirement.

you can playing around, try by yourself.

hope this will help you.
