How to format Isodraft Bolt Report

Abbas Ali

  •

    Fullscreen 266005BoltReport-Format.txt Download
    -----------------------------------------------------------------------------------------------------------------------------------------------------------
  *********** Standard ***********************


                                            N.S.         LENGTH                                     QTY     QTY
          BOLT DESCRIPTION                  (INS)        (MM)         ITEM CODE                     FAB     EREC
          ----------------                  ----         ------       ---------                     ---     ----

  65 LONG Studbolt AS Bolts ASTM            1/2          65           C1D/PNA1A1AJCA0DLNBB          0       4
     A193-B7,Nuts ASTM A194-2H


-----------------------------------------------------------------------------------------------------------------------------------------------------------
  ***********   Required ***********************


         BOLT DESCRIPTION                                                                         (Size)    (Length)                      ITEM CODE                  FAB    QTY

  65 LONG Studbolt AS Bolts ASTM A193-B7,Nuts ASTM A194-2H           1/2          65           C1D/PNA1A1AJCA0DLNBB          0       4

-----------------------------------------------------------------------------------------------------------------------------------------------------------

  • I thought that report using ISODRAFT is automatically generate like that?
    I heard AVEVA said there is a limitation on how may characters can be put before it automatically fall collum below.

    any idea?
  • [QUOTE=lidds;35344]Hi all,

    Have a look at this macro that I wrote sometime ago, should work fine and will export the report to a .csv file.  You will have to change the file output file location (line 6)

    This macro is to be run in IsoDraft and you need to extract one iso first (so it will set the iso option file, can be set in macro if someone has got the time)

    How to run file 'boltrpt.pmlfnc' in IsoDraft.
    Please show the method.

    Best Regards,
    :redface:
  • Hi lidds
    I tried to get your macro boltrpt.pmlfnc, but there is no file attached. So is It possible to attach it?
    Thanks
    Autuori
  • Dear 786PDMS,


    I have the same requirement. Did you get any solution for listed problem??????

    Thanks & regards

    [QUOTE=786PDMS;31448]Does anyone know how to format the std bolt report from Isodraft?...It comes something like this but we need it to as shown below:

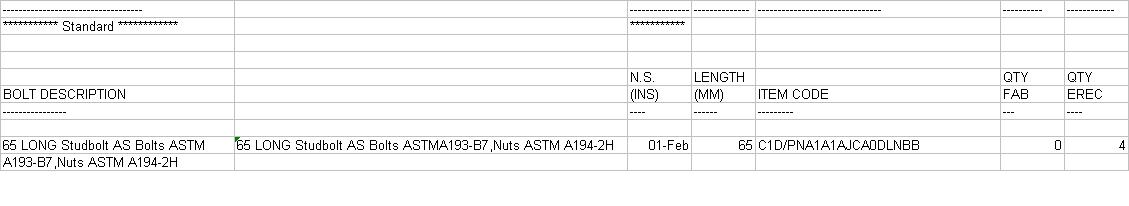

    Please see attached text file for proper format. Note how we want the description to come on one line.


    N.S. LENGTH QTY QTY
    BOLT DESCRIPTION (INS) (MM) ITEM CODE FAB EREC
    ---------------- ---- ------ --------- --- ----

    65 LONG Studbolt AS Bolts ASTM 1/2 65 C1D/PNA1A1AJCA0DLNBB 0 4
    A193-B7,Nuts ASTM A194-2H

    *********** Required ***********************


    BOLT DESCRIPTION (Size) (Length) ITEM CODE FAB QTY

    65 LONG Studbolt AS Bolts ASTM A193-B7,Nuts ASTM A194-2H 1/2 65 C1D/PNA1A1AJCA0DLNBB 0 4
