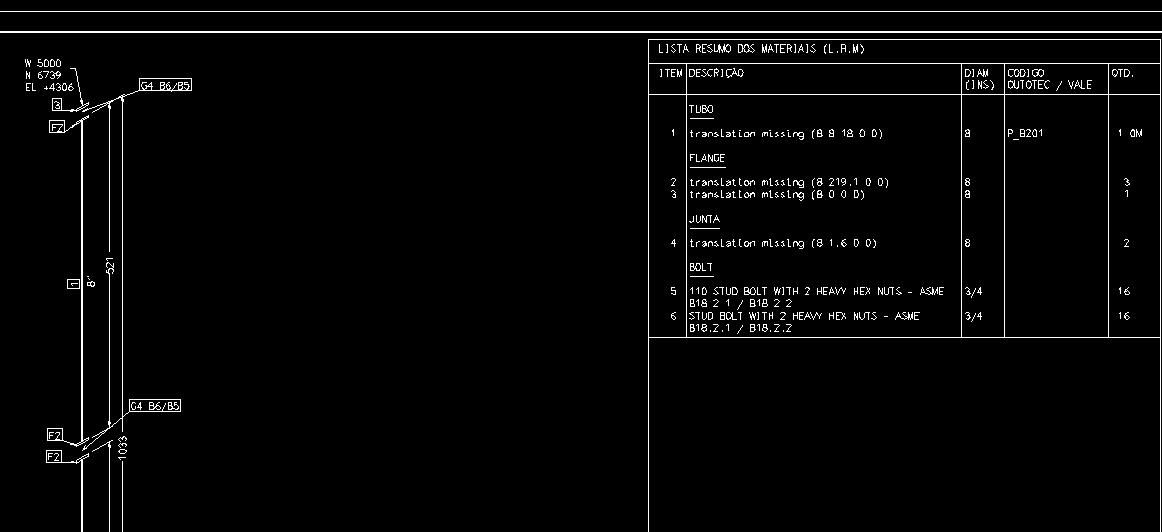

additional bolts shown on iso



1. One set of bolts does not have a length set. Does your Boltset have any settings in place for individual Bolt points.

2. The two descriptions have  different format for the ASME Code. Are they both in the bolt spec and What is the difference between the two.

3.Could you show the actual Bolt Spec.

Just trying to see where the second description is coming from. That may point to the source of the problem and why it has no length.

Are there any differences in the attributes of the flanges in Design. Apart from one being a Blind flange.
