New Bolting (Caps Screws & Stud Bolts)



I would check the butterfly Connection Types.
They should be wafer ones, so they should start with W (i.e. WFBB)
HTH

Also, Bthkness for STUD Holes should be set to 0 (zero)

Both good thoughts, and confirmed.

Flanges are FAB and valve is WFAB.

Bthkness is 0 for STUDs in the BLTPs

And, i have an answer....

The BTYP of the BLTPs were set as STUD.

When I changed them to BOLT, it worked.

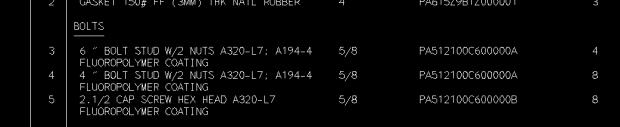

But now my lengths are coming in too short for the stud bolts.

They need to be 6" but they're staying around 4.5"

Good job !

And... I found the answer to the length problem.

The default BTYP in my spec was set to CAP instead of STUD.

Once I fixed that, everything comes in right.
