Possible to get the MESC and weight of bolts in design ?

We are trying set a utility to check bolt :MESC number (client number based on length) and weight in design before running the Isometric.

Wondering if its possible to get this info similar to how we can query bolt LENGTH, DIA, NUMBER, DESC etc in deign

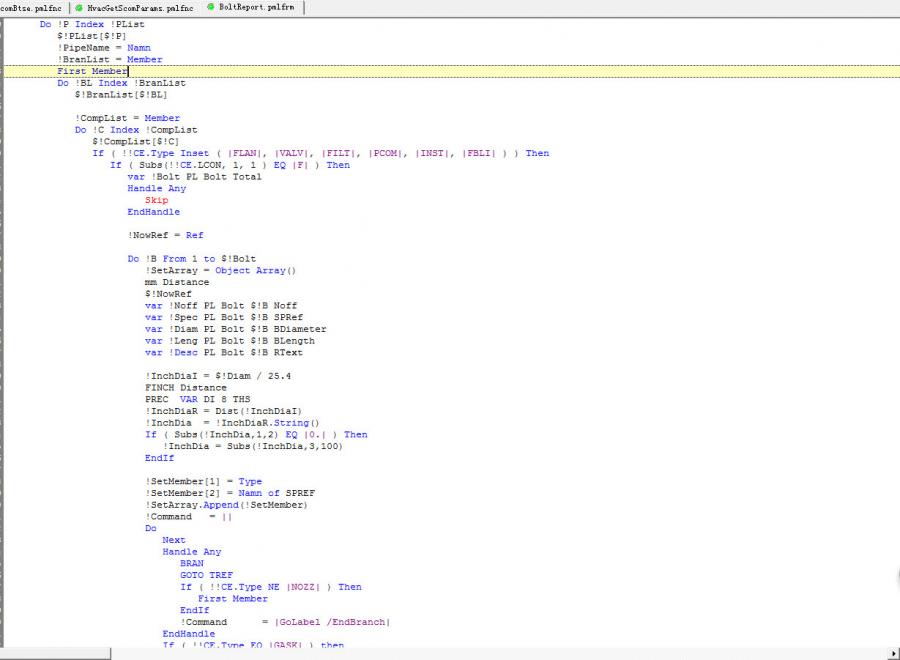

i think it's not possible with report utility. But you can write a macro for it.

[QUOTE=786PDMS;94263]We are trying set a utility to check bolt :MESC number (client number based on length) and weight in design before running the Isometric.

Wondering if its possible to get this info similar to how we can query bolt LENGTH, DIA, NUMBER, DESC etc in deign
i also have the same problem

no solution for this? im doing the vlookup for this..

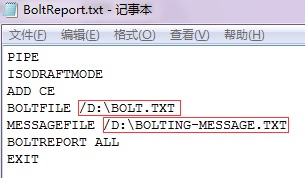

what we want here is to skip "isodraftmode"

You can try it, or refer to Aveva help file

other than this?



Do u use new bolting or old, if new (which most probably is), it is possible in design

Using NEW bolting. Can you please show us how ?
