bolt dia is not shown correctly above 3/4" size in isometric
vivek chudasama
over 10 years ago
vivek chudasama
over 10 years ago
Cancel
Vote Up
0
Vote Down
Sign in to reply
Cancel
john pitchers
over 10 years ago
7/8" is 22.23 mm

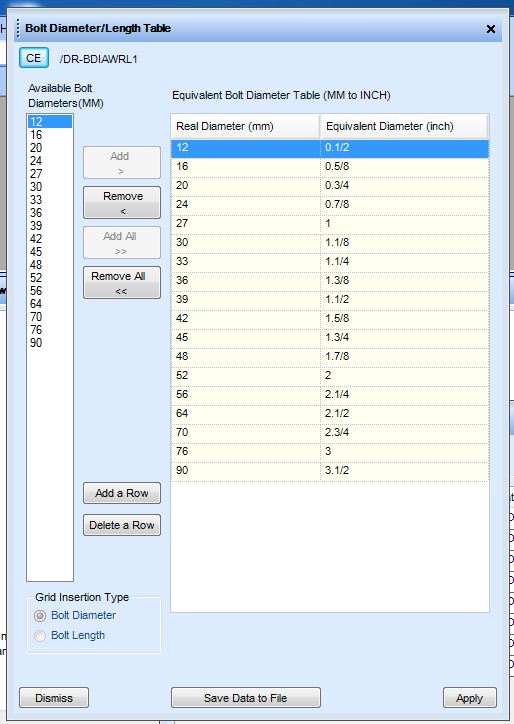

try changing 24 to 22 or 23 in the BLTSET and equivalent diameter table
Cancel
Vote Up
0
Vote Down
Sign in to reply
Cancel
vivek chudasama
over 10 years ago
thanks pitch
Cancel
Vote Up
0
Vote Down
Sign in to reply
Cancel
vivek chudasama
over 10 years ago
so i need to change each dia of bolt to real conversion of inch. like (1.1/8 * 25.4) and forever.
Cancel
Vote Up
0
Vote Down
Sign in to reply
Cancel
john pitchers
over 10 years ago
If you look at the PDMS Bolting Method in PDMS Guides forum, there is a table of Bolt diameter equivalents
