other possible BTYP beside the known TAP, JACK, CAP ....
Gubier
over 8 years ago
Corrado Galluzzi
over 8 years ago
I am not sure I have understood the reason...but...
Can't you play with different lengths at BTSE level (SCOM)?
Discussing about bolts is always a bit difficult through forum posts :-)
Cancel
Vote Up
0
Vote Down
Sign in to reply
Cancel
Gubier
over 8 years ago
Hello,
I'm working on bolts.
I have different bolts for one diameter
I created the BTSE the SBOL and the LTAB to the SBOL
in the BTSE are same BTYP as in BSPE
my BSPE it looks this way
HEADING
TYPE NAME BDIA BTYP CATREF DETAIL MATXT CMPREF BLTREF
DEFAULTS
- - - STUD
BOLT */BOLT-STD-FLG:M16 16mm STUD =0 /STD-FLG_DTEXT /ASTM_A193_GRB7 =0 /STANDARD_FLG-5/8_SBOL
BOLT */BOLT-ORIFICE-FLG:M16 16mm MACH =0 /ORIFICE-DTEXT /ASTM_A193_GRB7 =0 /ORIFICE_FLG-5/8_SBOL
BOLT */BOLT-BLIND-SPACER:M16 16mm CAP =0 /BLIND-SPACER-DTEXT /ASTM_A193_GRB7 =0 /BLIND/SPACER-5/8_SBOL
BOLT */BOLT-WAFERLUG:API594:M16 16mm TAP =0 /WAFER-LUG-API594-DTEXT /ASTM_A193_GRB7 =0 /API594_WAFERLUG-5/8_SBOL
BOLT */BOLT-WAFERLUG:API609:M16 16mm [COLOR="#FF0000"]TAPA[/COLOR] =0 /WAFER-LUG-API609-DTEXT /ASTM_A193_GRB7 =0 /API609_WAFERLUG-5/8_SBOL
BOLT */BOLT-MONOFL:M16 16mm [COLOR="#FF0000"]TAPB[/COLOR] =0 /MONOFL-DTEXT /ASTM_A193_GRB7 =0 /MONOFL-5/8_SBOL
the assignment and length calculation work perfect, but if I add the last rows with the BTYP TAPA and TAPB it doesn't work.
the reason to do it in this way, we need different length and part numbers
is it possible that you can't add different BTYP as the Standard from PDMS
MACH, CAP, JACK, TAP, STUD
maybe someone can help me
many thanks
Cancel
Vote Up
0
Vote Down
Sign in to reply
Cancel
Gubier
over 8 years ago
app. to the thread .......

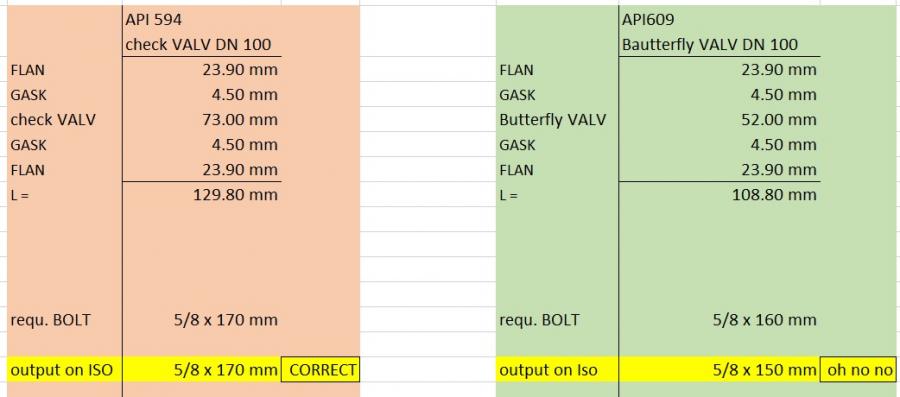

the bolts for Wafer Valve are double .. NS 100 M16x8 in my case M16x16
yes the connection type of the Valve is WBB
:crushed:
Cancel
Vote Up
0
Vote Down
Sign in to reply
Cancel
Gubier
over 8 years ago
Cancel
Vote Up
0
Vote Down
Sign in to reply
Cancel
Gubier
over 8 years ago
blockhead ............. now I understand, I created different BTSE for the VALVes wit the the same BTYP.
and in this BTSE I calculate the required thickness.
problem solved ...... correct length on Iso
Corrado, Thank you for the hint
greetings Patrizia
Cancel
Vote Up
0
Vote Down
Sign in to reply
Cancel
Corrado Galluzzi
over 8 years ago
Good Patrizia!
And, if I am not wrong, COCOs for Wafer components are normally made of four letters. i.e. WFBB
