bolt bore unit

tony liu
tony liu over 7 years ago

  • Sign in to reply
  • Cancel
  • tony liu
    tony liu over 7 years ago
    Hi, as per the ASME B16.5, under the metric unit system, the bolt bore size is given in imperial, in my project the unit system is metric, how should I get the imperial unit for the bolt bore size?

    thanks a lot in advance;
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Venkata Rao Peta
    Venkata Rao Peta over 7 years ago
    Need to convert into metric, as Projects Run either in metric or imperial.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Jens Klindt
    Jens Klindt over 7 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • tony liu
    tony liu over 7 years ago
    Thank you very much, FromHH for your reply, I am trying to figure out if I could introduce the imperial bore of the bolt into my DXTR's STEXT attribute, if could what expression should I use?

    any further smart ides?
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Mohd Fadzli
    Mohd Fadzli over 5 years ago
    Hi All,

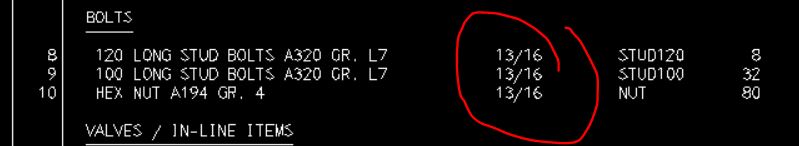

    My project use Bolting  Units  METRIC in option file.
    The bore diameter(BDIA) size in BOM appear as 16 MM.Our project team require the bore to be appear as M16.
    Can isodraft provided output as requested by project team?

    Thanks
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Venkata Rao Peta
    Venkata Rao Peta over 5 years ago
    If item code you provide as MBOLT-M16, They can't manage?

    Bore will appear as Real value in N.S.(MM) Column.

    Iam also eager to know if there is some solution for this.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Tejas Desai
    Tejas Desai over 5 years ago
    did u use  following code????


    Bolting Units [COLOR=#333333][COLOR=#333333]METRIC PREFIXBOREUNITS[/COLOR][/COLOR]
    [COLOR=#333333][COLOR=#333333][FONT=Verdana]ATEXT 207 'M'
    [/FONT][/COLOR][/COLOR]
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Mohd Fadzli
    Mohd Fadzli over 5 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Mohd Fadzli
    Mohd Fadzli over 5 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Amrut Suthar
    Amrut Suthar over 4 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
>
