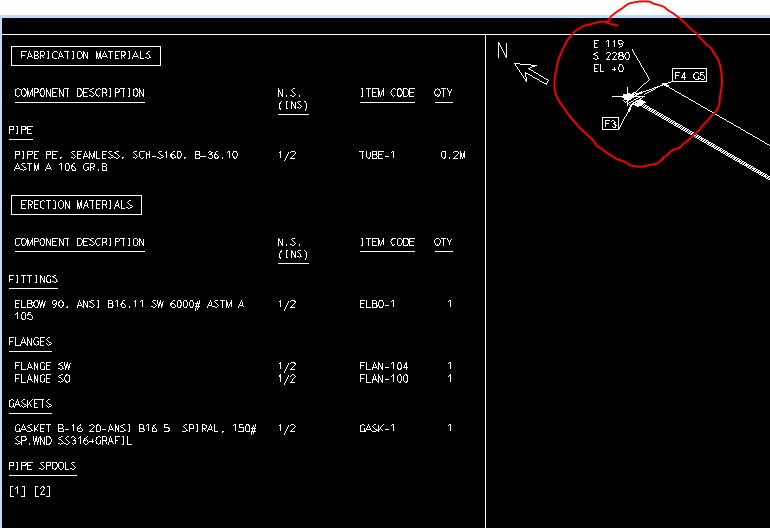

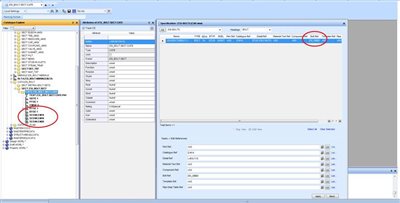

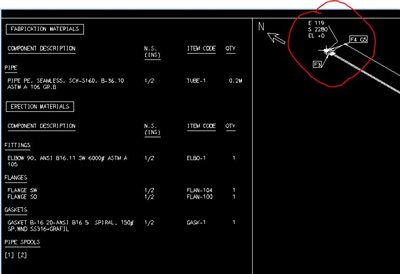

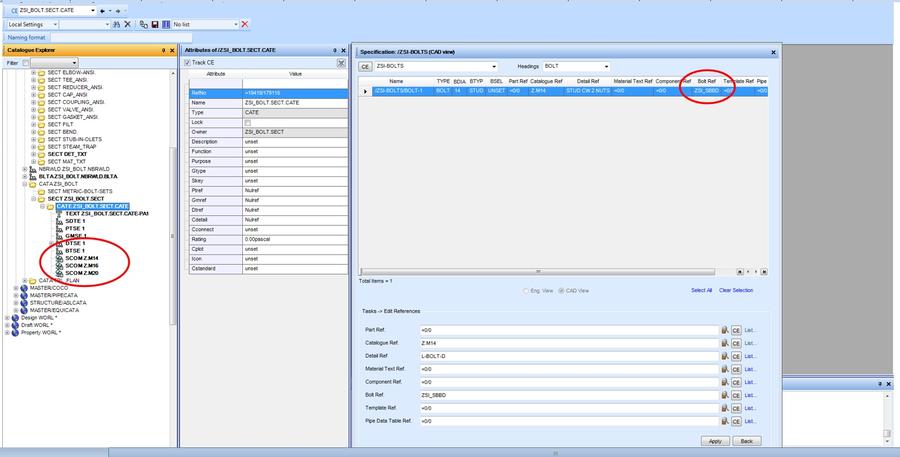

Error in bolting requirements
rahul
over 6 years ago
rahul
over 6 years ago
Cancel
Vote Up
0
Vote Down
Sign in to reply
Cancel
Venkata Rao Peta
over 6 years ago
New bolting.
check BTSE, BLTP elements
check parameters on those.
check lengths table of bolts whether required length added or not
check bolt diameter tables also
check ref on flange level and spec level for bolting ref.
Number of steps and rules to be followed before doing this.Reinvestigate all these in your bolting method
Cancel
Vote Up
0
Vote Down
Sign in to reply
Cancel
rahul
over 6 years ago
Cancel
Vote Up
0
Vote Down
Sign in to reply
Cancel
Cary
over 6 years ago
check the BLRFARRAY of the Flange SCOM. it should contains the BTSE.
I think BOLTREF of the FLANGE SPCO only used in OLD Bolting.
Cancel
Vote Up
0
Vote Down
Sign in to reply
Cancel
Samart Jaitiang
over 4 years ago
For Aveva E3D in the Bolt specification "question" attribute, it is necessary to define the attribute by "Question TYPE" command.
Cancel
Vote Up
0
Vote Down
Sign in to reply
