(42,64) **** not selected

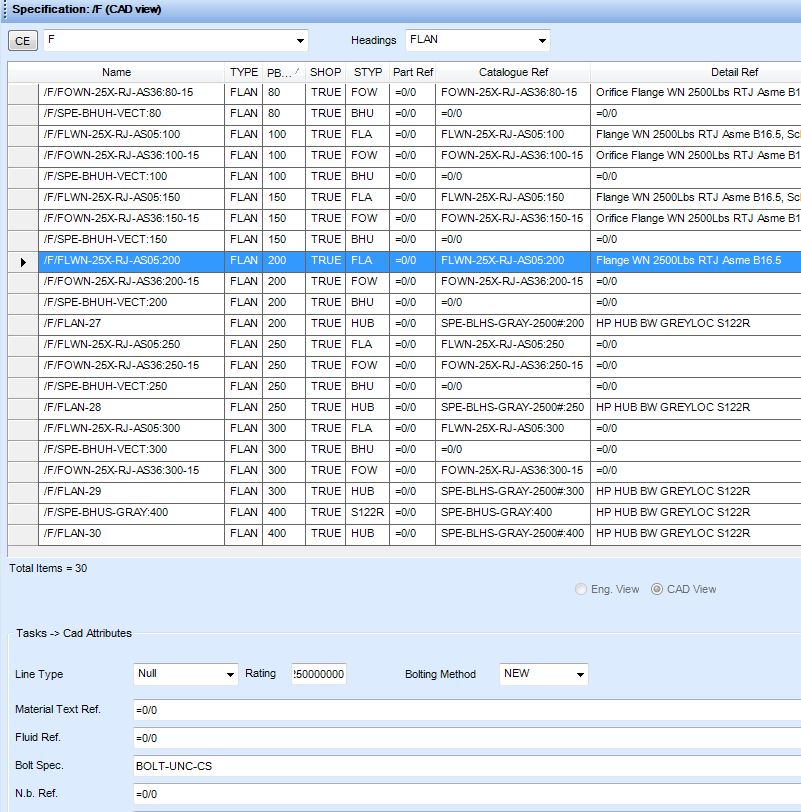

Did you set bolt spec ref for pipe specification ?

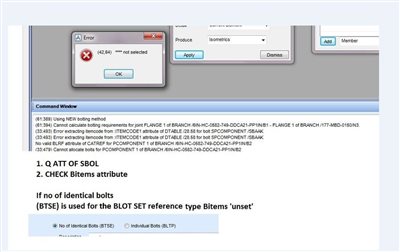

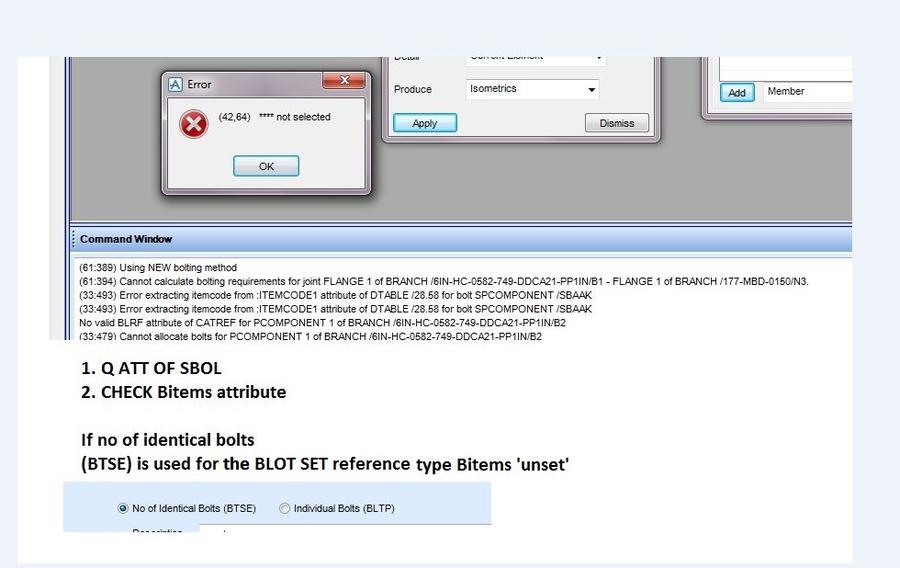

Check BITEM attribute for SBOL element...
Post the image here please...



As the message says, check BLRF of CATREF of PCOM

[COLOR="silver"]- - - Updated - - -[/COLOR]

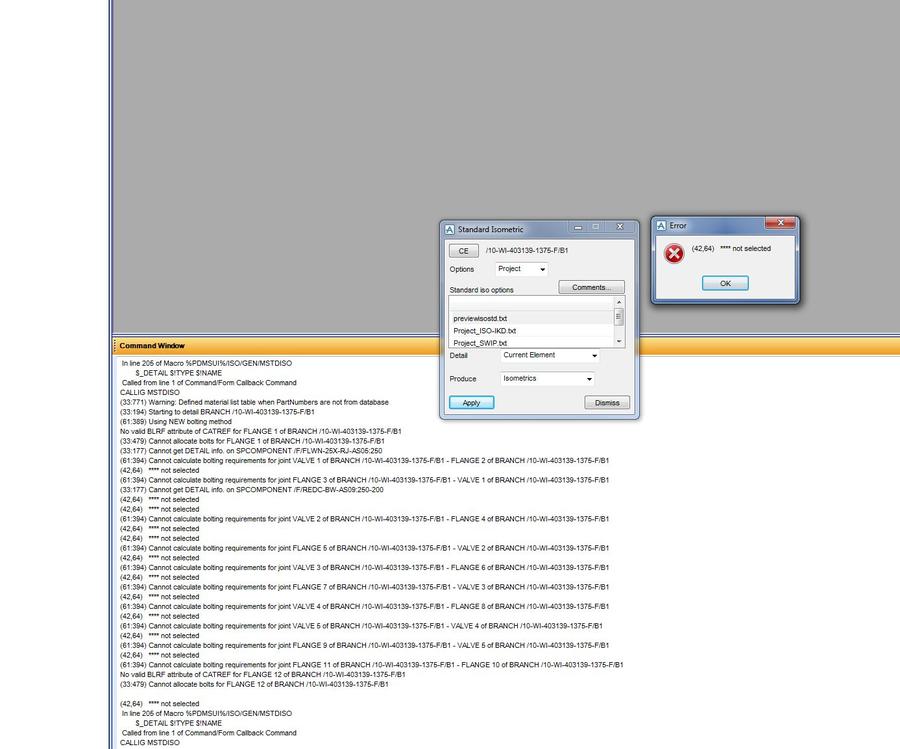

I mean, on the Command Window you have 'No valid BLRF...'
