Design Module Colour Settings
  • Forums
  • Resources
  • Mentions
  • Sub-Groups
  • Tags
  • More
  • Cancel
  • New
  • Replies 15 replies
  • Subscribers 8 subscribers
  • Views 168 views
  • Users 0 members are here
Options
  • Share
  • More
  • Cancel
Related

Colour Settings

Anders Bergenholm
Anders Bergenholm over 16 years ago

  • Sign in to reply
  • Cancel
  • Anders Bergenholm
    Anders Bergenholm over 16 years ago
    Hi

    I would like to create my own colours in design. In command window I can type:  COL 20 MIX RED 40 GRE 40 BLU 40 and colour 20 is looking like darkgrey.
    But how do I save the new colors and how do I name them?

    The Colour Control File pdms-colours is setting name and number, but what file is setting the mix to get the colour and where to put name and number for the mix.

    Thanks

    :support:
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Anders Bergenholm
    Anders Bergenholm over 16 years ago
    Is there someone that knows if this is possibly?

    :unsure:
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Raymond Metselaar
    Raymond Metselaar over 16 years ago
    There were some colour files here on the forum. Try a search with colour.
    Hth,
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Anders Bergenholm
    Anders Bergenholm over 16 years ago
    yar_nl

    I started with search and didn't find what I was searching for.
    This is the reason I made a new thread. But maybe it is not possibly to create new color and save them.

    :confused:
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Raymond Metselaar
    Raymond Metselaar over 16 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Anders Bergenholm
    Anders Bergenholm over 16 years ago
    Unfortunate not.
    I would like to do my own colour and save it so I can have it as a default colour at all PDMS work stations.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • NAGENDRA VUDDAGIRI
    NAGENDRA VUDDAGIRI over 16 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Anders Bergenholm
    Anders Bergenholm over 16 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Thomas Back
    Thomas Back over 16 years ago
    You can add your color mixes in the %PDMSEXE%/PDMSUI/DES/GEN/INIT   file, and they will be loaded at start of PDMS design.

    E.g.
    COLOUR 20 MIX  RED 45 GRE 45 BLU 80
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Anders Bergenholm
    Anders Bergenholm over 16 years ago
    Thanks TBACK.

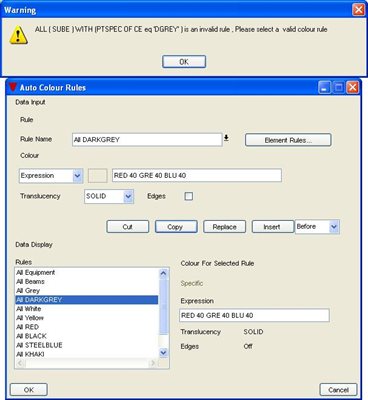

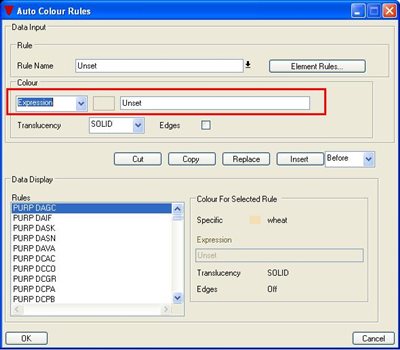

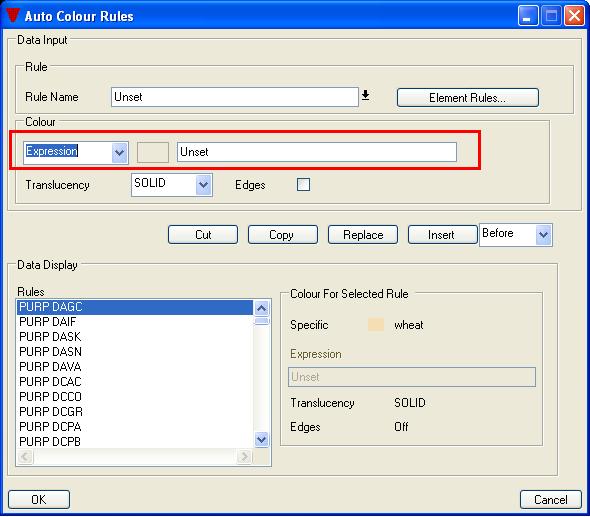

    Now it is working fine, then I only had to type 20 in expression window in autocolor rules to get the colour to be in AutoColour rules.

    We meet in PDUG-WOF meeting between Sweden and Finland, vet inte om du kommer ihåg det.
