As I'm doing some draft atuo tagging rules, i'm looking for some knowledge regarding design elements, that can be used for room identification.
We have a lot of different rooms inside the facility, and i would like to tag these rooms with a SLAB.
I thought about using empty EQUI, and use the description attribute - but i still think a EQUI is misleading to use, as it's not an equipment.
Does anybody have a suggestion/experince of what element to use - the element should have a POS attribute, as it needs to be located at the correct location.
Do you have access to the room elements? If you do then you could make use of them to define rooms, their boundaries (BNDLIN) and volumes (AREADE). The ROOM element has a LABOFF attribute that allow you to define an offset position from the origin of the room, which you can use for hooking up labels (LABOFF is short for label offset).

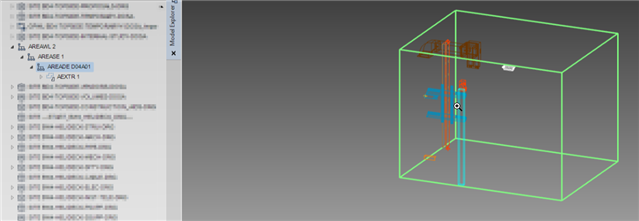

If you don't have access to create the ROOM element, then you could use the AREADE element beneath the AREAWL, this allows you to define volumes that represent spaces (room) within the 3D space. The advantage of the AREADE element over using things like EQUI is that you won't have to filter them out from clash reports and other mechanisms that use the spacial map, but the biggest advantage is that you can query any element and it will tell you which AREADE the element is within.
This means that if you move an element into another position, which is in a different AREADE, it will automatically be updated when you query which area it is in.

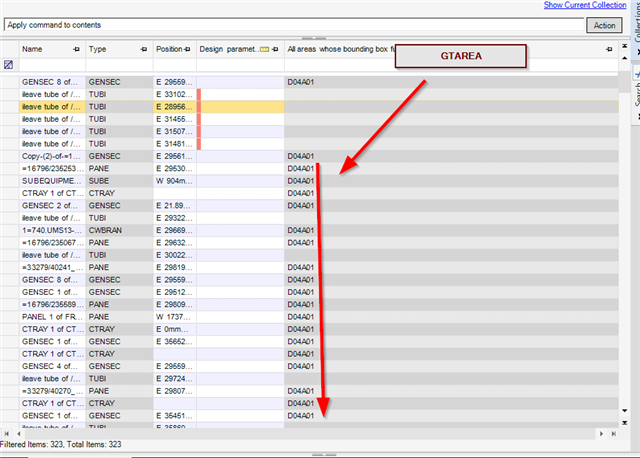

Hello Robrecht, we have a problen with volumen obstruction level 9-10 (soft volumen), because penetrate other rooms and with GTAREA we obtain mistakes,
¿can we use other command like GTHARD on AVEVA 2.1 to obtain only hard volumen desing inside rooms?

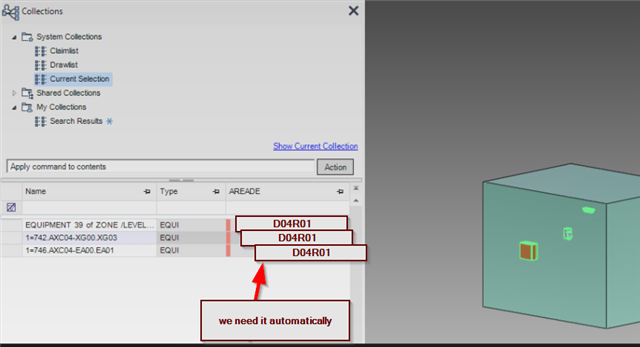

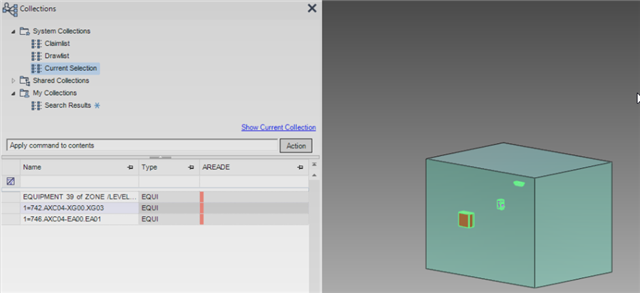

GTHARD demand rooms to run and we have Areas and can not use on collection to obtain hardvolumen room identification
Hello Robrecht, we have a problen with volumen obstruction level 9-10 (soft volumen), because penetrate other rooms and with GTAREA we obtain mistakes,
¿can we use other command like GTHARD on AVEVA 2.1 to obtain only hard volumen desing inside rooms?
GTHARD demand rooms to run and we have Areas and can not use on collection to obtain hardvolumen room identification
