unable to get components in spec 3sb01 using component creation form in e3d ver 2.1 fix 27

check at paragon, go to SPEC, set function or purpose to pipe

and below SPEC, should have TEXT Stext 'PIPING'

Why are you recalling old PDMS forms when using E3D?

there were issues with new forms while creating components

arif all is okay just that there were issues with point set of tubes so the error had come of p1bore

You should check/fix your piping specifications first.

Then you can gett all the benefits of using a new, modern, powerful user interface.

its AVEVA CATALOGUE VERSION 2.1 FIX 27

CORRADO i got a error of gasket not available in spec created a new  set of gaskets and similarly for reducer yet not getting these components in design. can you suggest what could be the reason

can be some error in spec...its very typical activity, & every time it gives correct result..could you elaborate more on issue...method, its also requested to not to mend PDMS style working method into E3D style working method, although both remains the same... but some question & answers are different in both softwares...i hope you understand.... suggestion are always welcome.

Anindya,

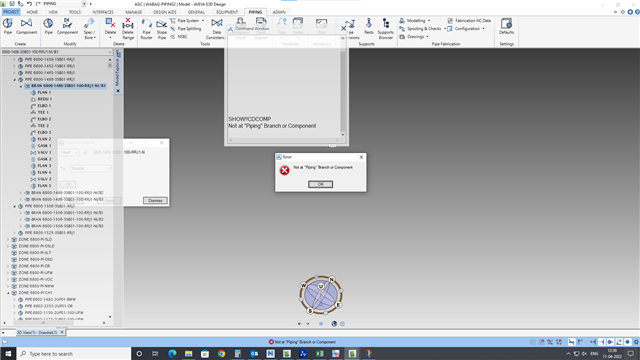

From the snaps posted above i can understand that there are some basic errors in the project setup. Check whether all the components added in the SPEC 3sbp01 has all the references correctly in place. Also, do not use the cdcomp form for E3D. Use the E3D provided component creation form.

Alfred
