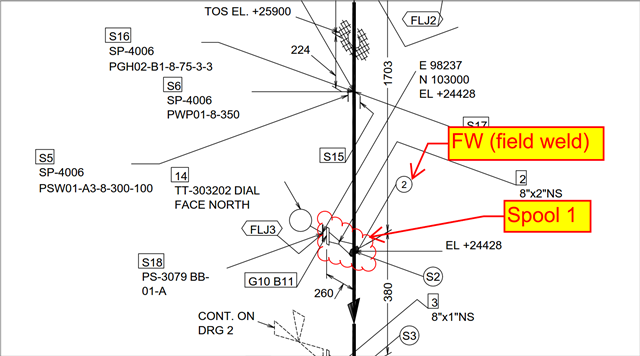

Field weld at Olet Run Pipe

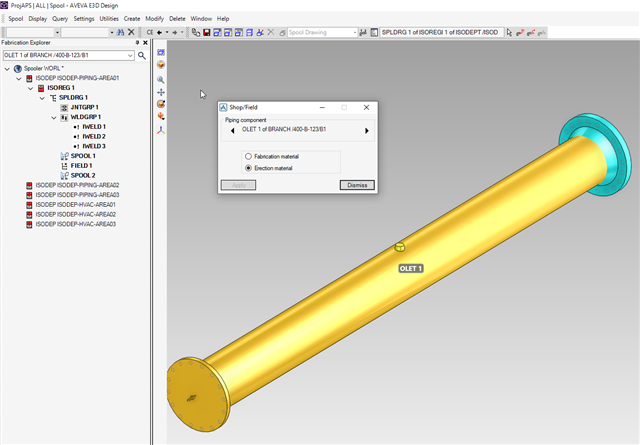

If you change OLET Shop from TRUE to FALSE you should get the correct (field) weld Symbol...

By the way...have you considered using the new Pipe Fabrication tool set within MODEL Module instead of old SPOOLER module?

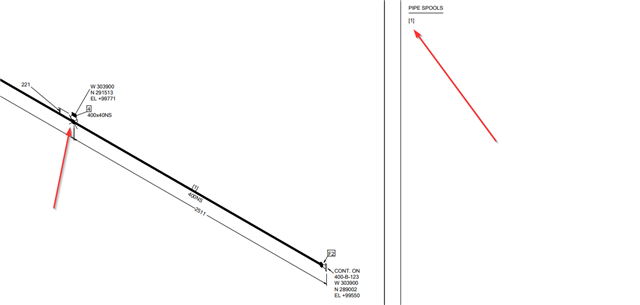

Thanks, I did try to set the shop attribute of OLET to False. But that results in two separate spools for the run pipe. It is not correct.

Yes, I saw your posts in other topic advised to use the Pipe Fabrication in Design Module. However, spooler still works fine for me. Some additional macro/pml tool needs to make spooler better, but it is not an issue.

Maybe I will apply Pipe Fabrication in the next project.

It works fine for me

Still two separate spools if changing olet shop attribute to false.

We have same request from our construction team, what we did is adding UDA for the OLET and some PML to assign spool number and attribute to the olet.

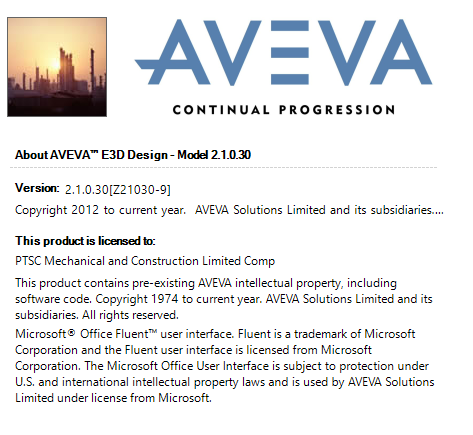

Which E3D version/fix?

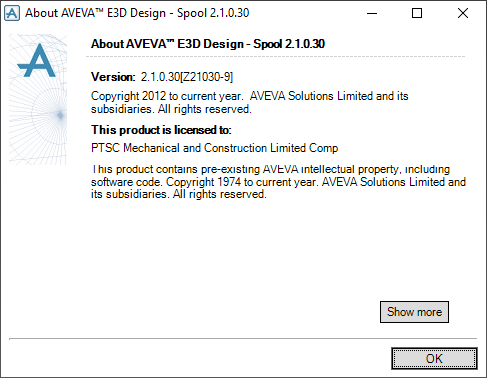

Spool 2.1.0.30 Sir

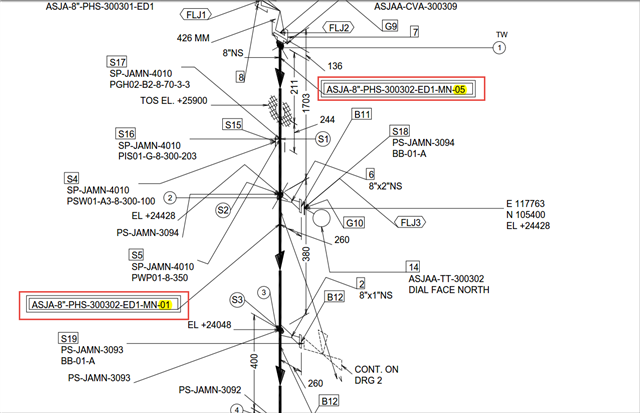

I saw Sht column in your PML table. Is it sheet number? How can we identify the sheet number for each pipe component in 3D model? Pls advise

E3D 2.1.0.30

Yes it is sheet number.

We assign sheet number at SPLDRG level.
