Creating 'POHE'

I want to model my Ground level with POHE, but it seems that some points do not place on right elevation. I thought that POHE points could have any elevation and the surface will have some up and downs, but it seems that this element type is not suitable for this purpose. so what is the difference between panel and POHE?

In my action, the points coordination are based on my import data but the surface place down the point, i tried to show in attached image. Please tell me if there is any solution.

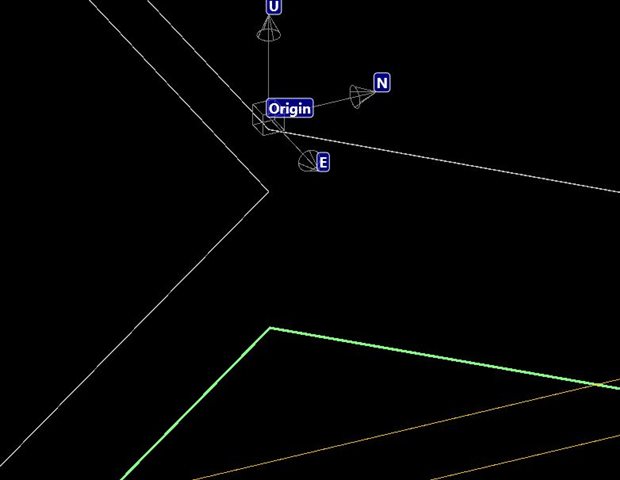

In attached pic, the grey box represent for point and the green vertex is for POHE surface which has been created.

Thanks

Corrado Galluzzi over 2 years ago

Hope this helps...
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Bahman Alavi over 2 years ago in reply to Corrado Galluzzi

Hi

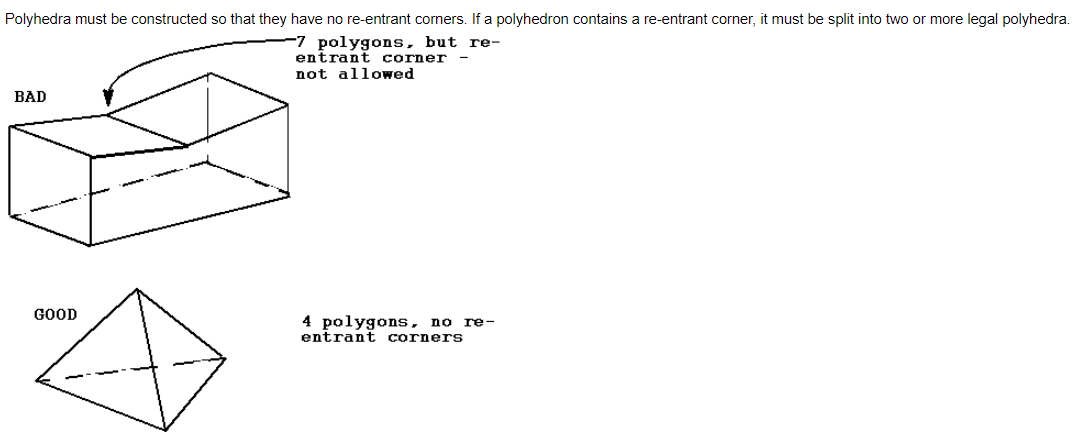

Thanks corrado. I've seen this in manual, but i think have never paid enough attention to that. So, i think that I must split my surface to smaller ones, am i right?

is there any way that i could model it without splitting, is POLYHEDRON helpful? although until now I couldn't arrange the polyhedron.

thanks
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Corrado Galluzzi over 2 years ago in reply to Bahman Alavi

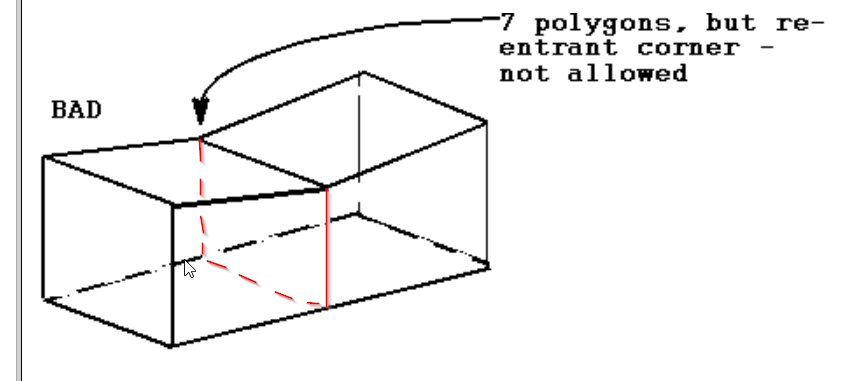

Two POHEs like this:

I would try to get a file of the ground (is it a brown field project?)

For example you could import it as IFC.

Or you could use Terrain application and import XYZ, IGES, STL or STEP files
