PMLGRID is having issue in showing information in column real or string.
Same form providing different sort order & filter option in PMLGRID FORM.
It seems Number filter not available in E3D or any other codes to be changed?
PDMS
E3D
Is there any kind of solution or fix?
-stp

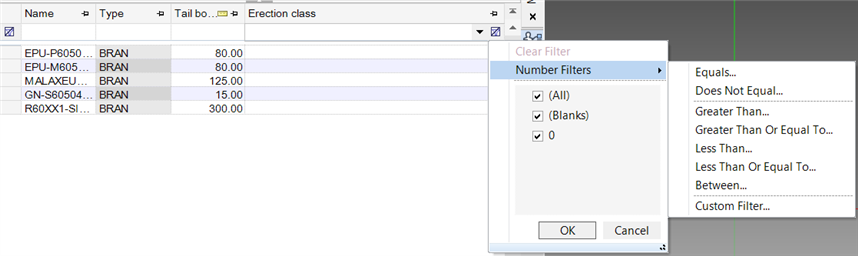

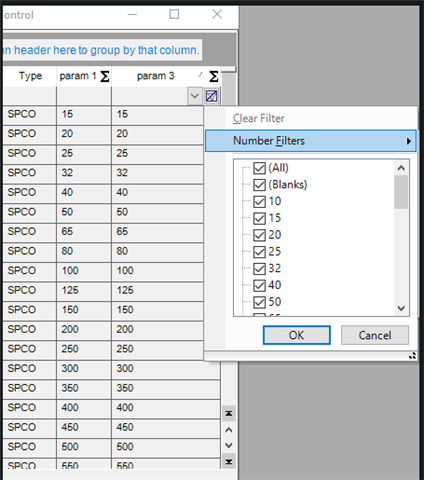

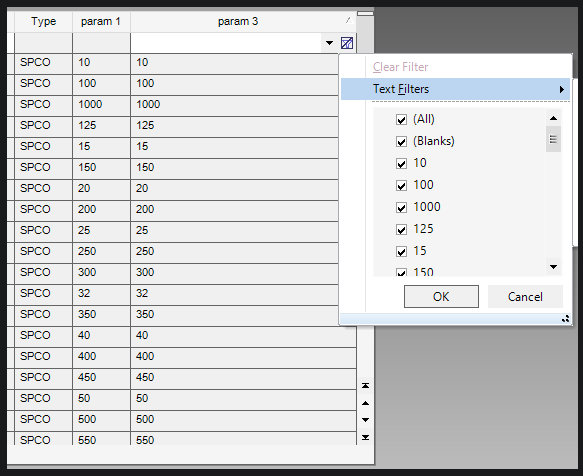

Is it clear?(1 st picture E3D / 2nd PDMS)
E3D version: AVEVA E3D Design Design Mk2.1.0.33[Z21033-6] (WINDOWS-NT 6.3) (18 Nov 2021 : 02:09)
Used PMLGRIDExample file provided by aveva and modified for spco component.
Most of the Aveva forms also having the same issue!!
Thanks,
-STP

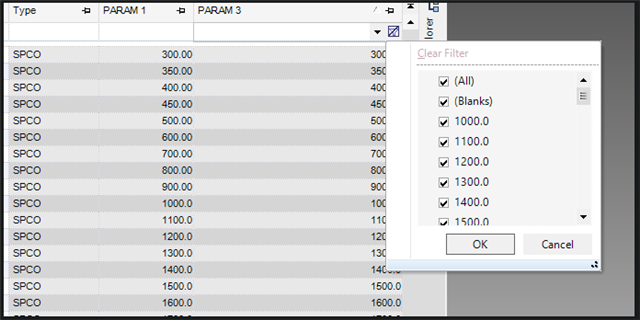

Hi, the Number filter still works on E3D (tested in E3D 2.1.0.26).

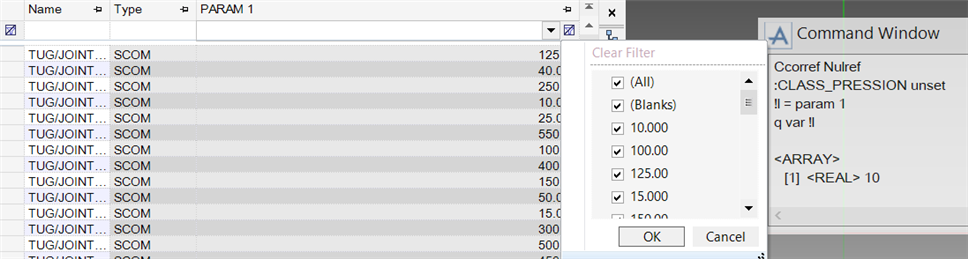

But, because PARA is an array, the filters doesn't seems to work indeed.
Even if the PARAM is a real.
Hi,
Number Filter and sorting working well in E3D search & collection form .
But not in Aveva.core.presentation - PMLGRID function.
This option working well in PDMS with Aveva.pdms.presentation.
What is changed there,what to be done for E3D tools if we are using PMLGRID.
-STP
