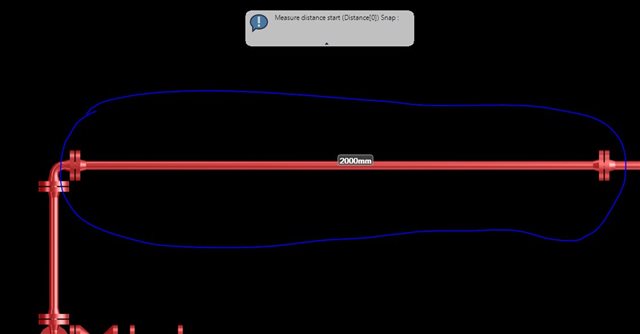

Is there any command to automatically callout length with flanged in MTO As per attached snap.
thanks
Hello Experts,
Is there any command to automatically callout length with flanged in MTO As per attached snap.
thanks
Hi, may I ask what kind of MTO do you need? Is it the material list that comes together with the isometric drawing?
Thanks for reply
Actually I am working on lined piping, but the spec is not costomization till now, I am using normal spec,
But I need the report for spool wise because i arranged all spool between two flanges as round figure.
Did you use normal flanges on modeling your lined piping?
Yes it's normal flanges.
Can i see a sample of MTO that you need?
What method do you use to extract the MTO?
temporary using ATLE and ITLE in report normal form.
I see.
If you can change your piping model to use flanged tube with GTYP FTUB, instead of using normal flanges, then you will able to output the desired length by using the FITLEN attribute.
Another option is that you will create a special flange catalogue whose Ppoint 2 is moved on the same position as Ppoint 1.
Then in the Model, you will set MTOC OFF to these special flanges.
With this, you can again refer to the ITLE attribute.
thanks @ Emmanuel Desiderio
let me check.
