PDMS Design module clarification

THIRA

Dear Experts

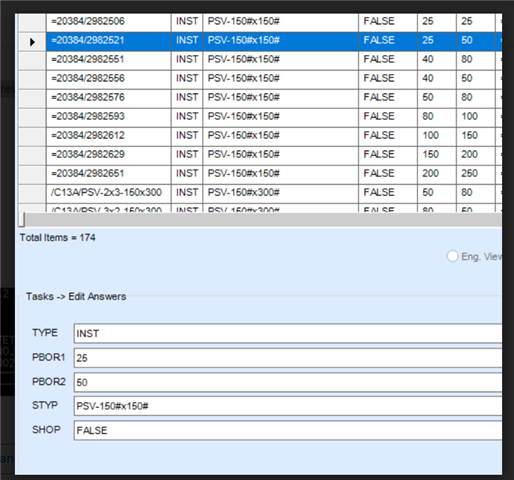

With reference to the attached images, I created the instrument PSV in PDMS paragon module with the P1 and P2 bore as 25 × 50 (1 x 2) , and the specification also reflects the same. The SKEY is set as RAFL (Angle control relief valve)

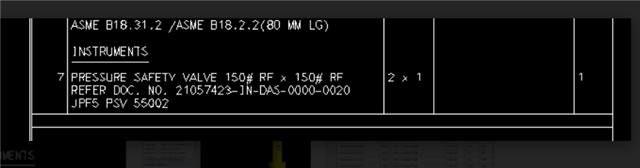

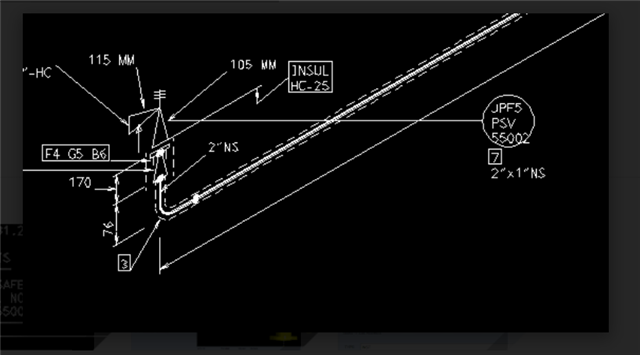

But in the Isometric drawing, the bore values are reversed ( 2 x 1 ) higher bore to lower bore.

Thanks in advance.

Thanks & Regards,
THIRA
